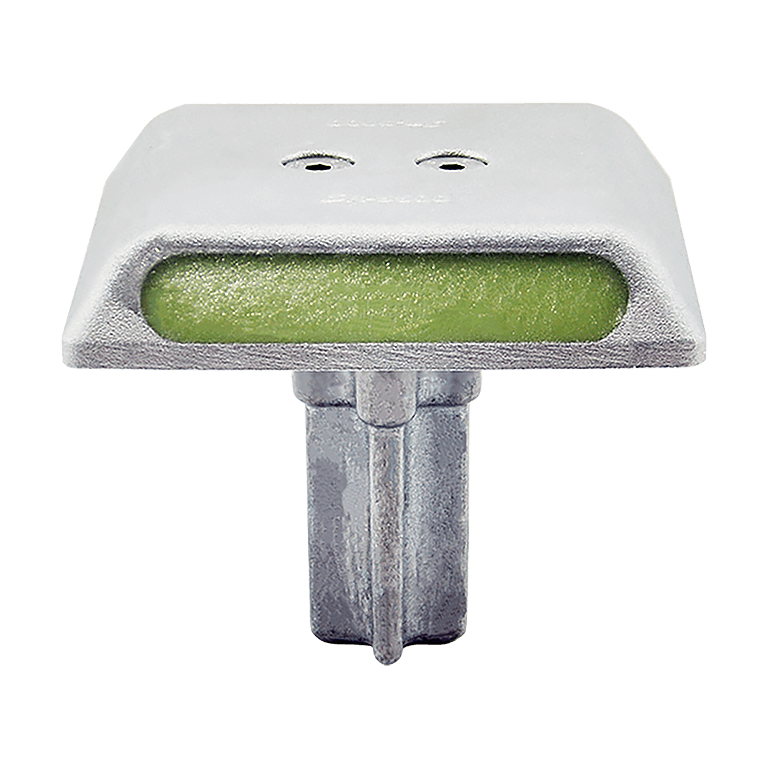

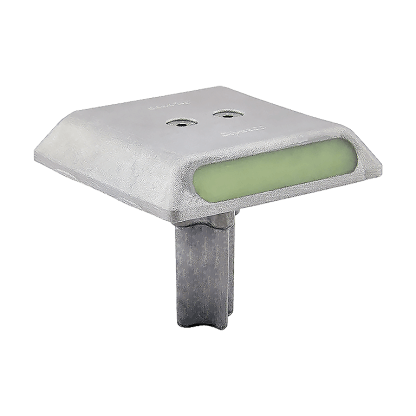

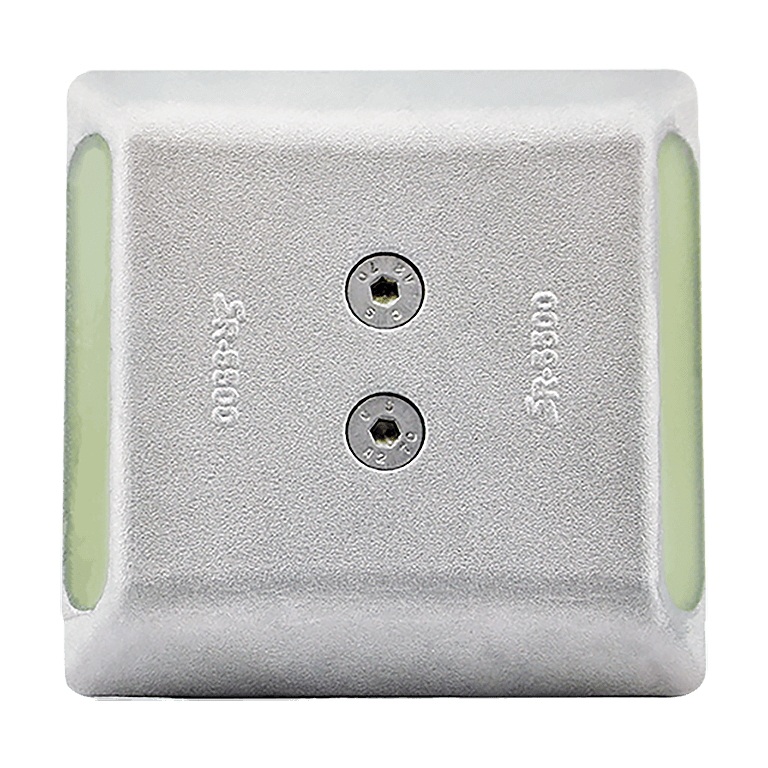

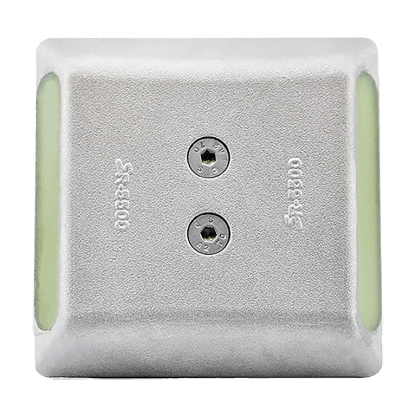

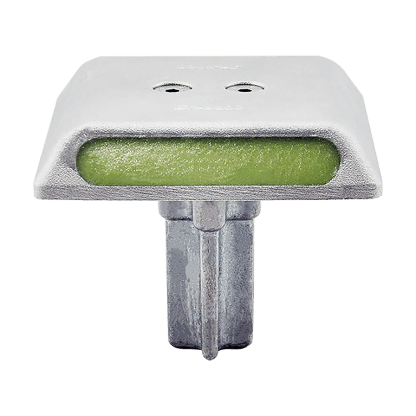

Photoluminescent Road Stud (TS-SR-5500L)

Glow-in-the-Dark Road Stud

  • Provides nighttime roadway illumination without requiring any electrical connection
  • Low profile design
  • Robust aluminum construction resists high impacts
  • Fast and easy installation
  • Download Data Sheet (PDF, 212KB)

Description

General Description

The TS-SR-5500L is an eco-friendly photoluminescent road stud that provides nighttime roadway illumination without requiring any electrical connection. The glow-in-the-dark feature allows the road stud to store ambient light throughout the day and then re-emit this stored energy at night. The storing-emitting function can be used repeatedly and has long average life.

The road stud’s low-profile design rises only 0.81″ (20.5mm) from the surface and its robust aluminum construction is designed to resist high impacts. The top part of the stud can be easily changed, making maintenance simple.

The road stud’s auto-illumination feature substantially enhances nighttime road safety by providing guidance to drivers, cyclists, and pedestrians. The road stud is appropriate for traffic zone edges, parking lots, pedestrian and bike paths, and areas that lack streetlights.

Features

  • Provides nighttime roadway illumination without requiring any electrical connection
  • Low profile design allows free movement of equipment and personnel
  • Robust aluminum construction resists high impacts
  • Top part of the stud can be easily changed, making maintenance simple
  • Fast and easy installation

Applications

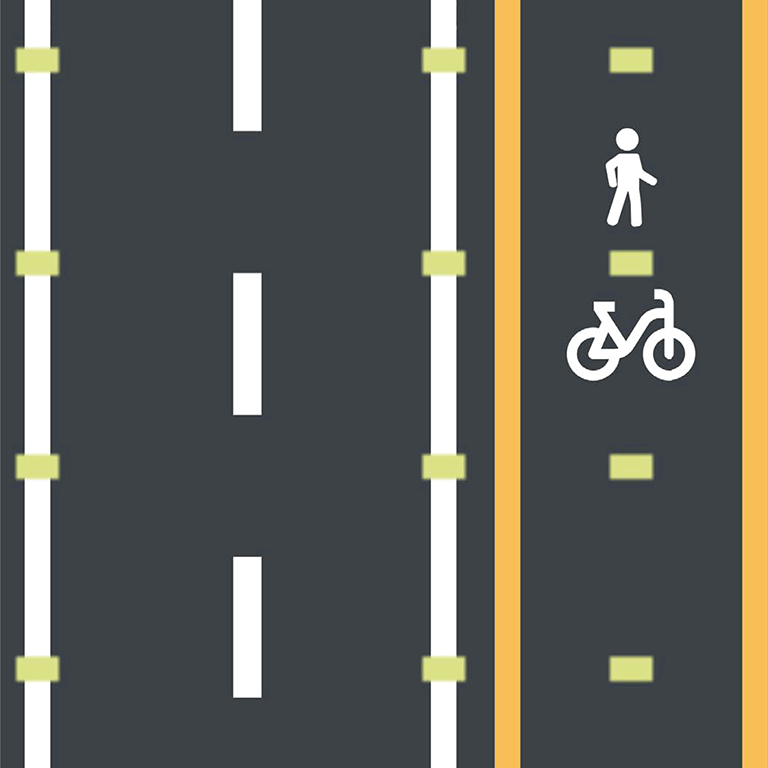

  • Appropriate for traffic zone edges, parking lots, pedestrian and bike paths, and areas that lack streetlights
  • Due to its photoluminescent capability, this road stud must be installed in areas that receive sufficient ambient light

Data Sheet

How to Specify

Photoluminescent Specifications

  • Color: Yellow-Green
  • Measurement performed according to standard D65 1000lx after 10 minutes excitation.
    Luminescent intensity after:
    10 minutes > 1000 mcd / m2
    60 minutes > 200 mcd / m2

Mechanical Specifications

  • Material: Cast aluminum alloy
  • Rising from Surface: 0.81″ (20.5mm)
  • Mechanical Resistance: 60 Tons
  • Weight: 1 lb. (0.45 Kg)
  • Dimensions: 3.94″ x 3.94″ x 3.33″ (100 x 100 x 84.5mm)
  • Protection Index: IP68, IK10

Drawings

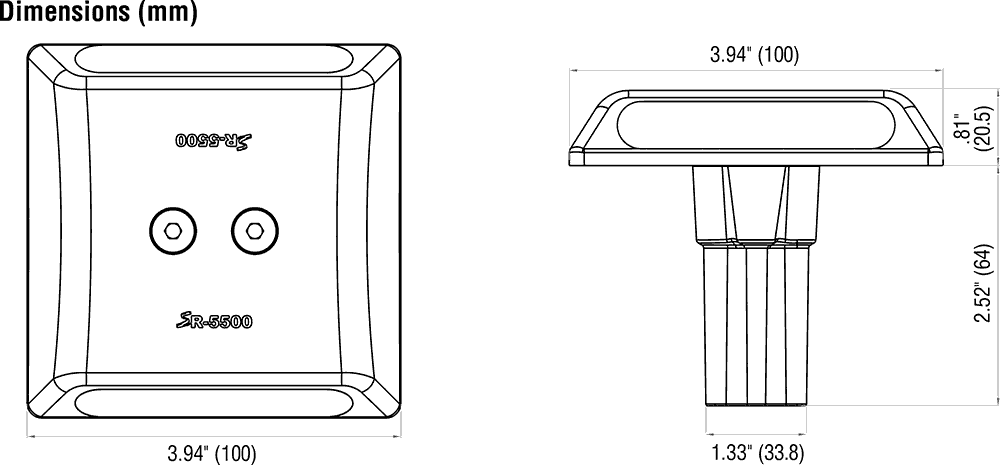

TS-SR-5500L dimensions

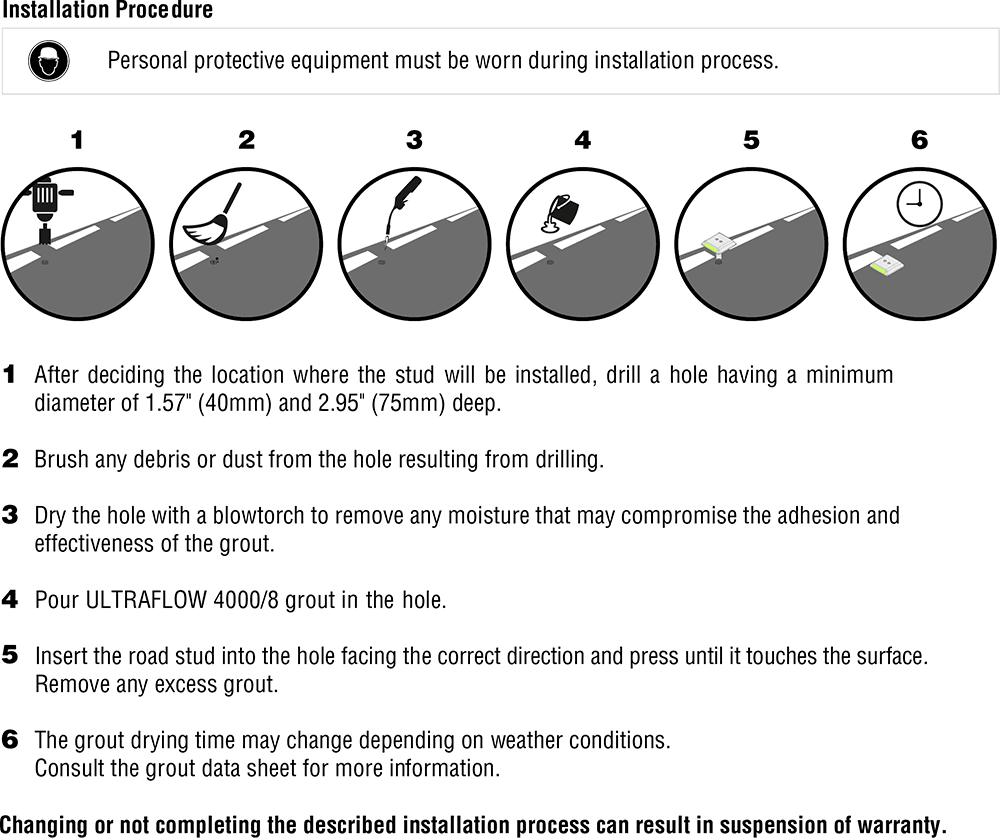

TS-SR-5500L installation
