Uplighted LED Road Stud (TS-SR-20VL)

Get a Quote

Description

Features

  • Road stud specially developed to illuminate historic areas and pedestrian zones
  • Ideal for zones where it’s necessary to project vertical lighting
  • Aluminum and polycarbonate
  • Only .59″ (15mm) above road surface
  • High brightness during day and night
  • Low maintenance, 100% waterproof
  • Connect multiple road studs in series circuit
  • Wired system that can be powered by electric or solar energy
  • Low power consumption
  • Internal prismatic system
  • Up to .62 mile (1 km) visibility distance due to high intensity LEDs
  • Many LED color options available for a wide variety of applications
Get a Quote

Data Sheet

How to Specify

Specifications

Modes of Operation:

  • Always On (other modes of operation like flashing or sequential are available with external controller)

LED Configuration:

  • Uplight
  • Uplight + 1 side illuminated
  • Uplight + 2 sides illuminated

Electrical:

  • Power Supply: 12V DC or 24V DC
  • Current Consumption: Uplight: 160 mA, Unidirectional: 20mA, Bidirectional: 40mA
  • Power Cable: Brown Wire (+), Blue Wire (–)
  • Working Temperature: -13°F to +185°F (-25°C to +85°C)

Optical:

  • LED Quantity: 16 LEDs (up to 4 optional LEDs may be added to the sides)
  • LED Type: 5mm
  • LED Colors: White, Red, Yellow, Green, Blue
  • Viewing Angle: 15°

Mechanical:

  • Material: Aluminum and Polycarbonate
  • Mechanical Resistance: 20 tons
  • Weight: 2.2 lb. (1 kg)
  • Protection Index: IP68, IK10
  • Dimensions: 5.67″ (144mm) diameter x 3.43″ (87mm) height

Drawings

TS-SR-20VL led configuration

TS-SR-20VL cable layout

TS-SR-20VL dimensions

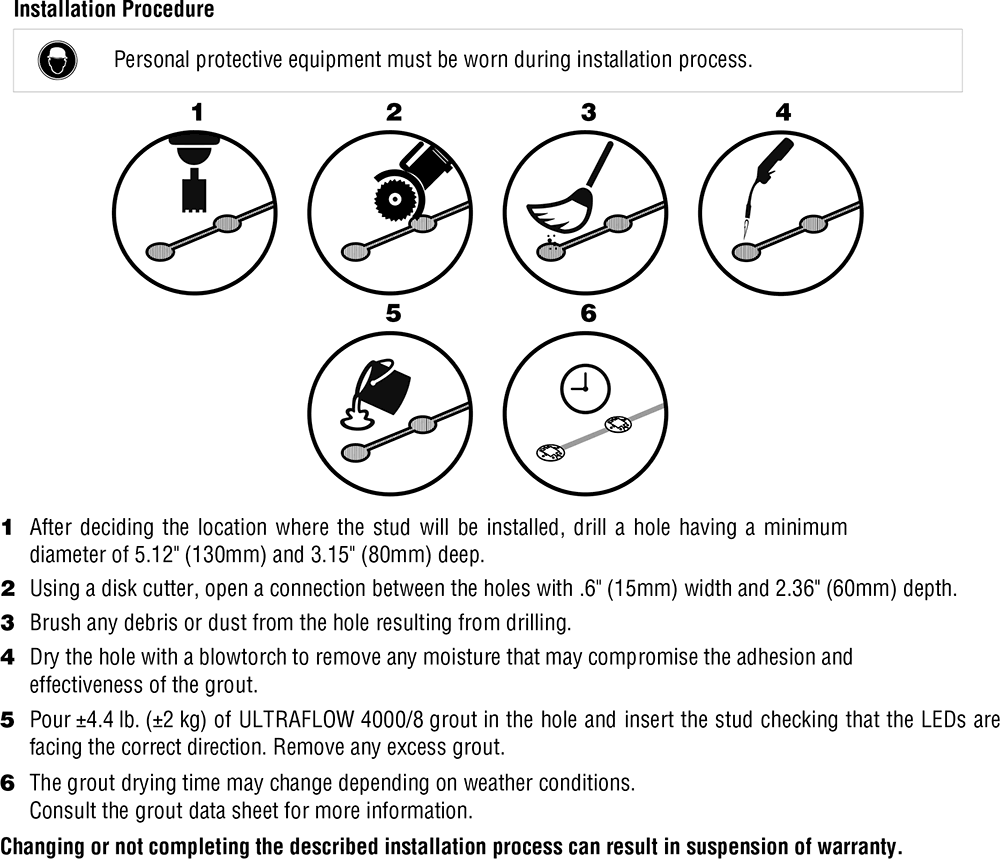

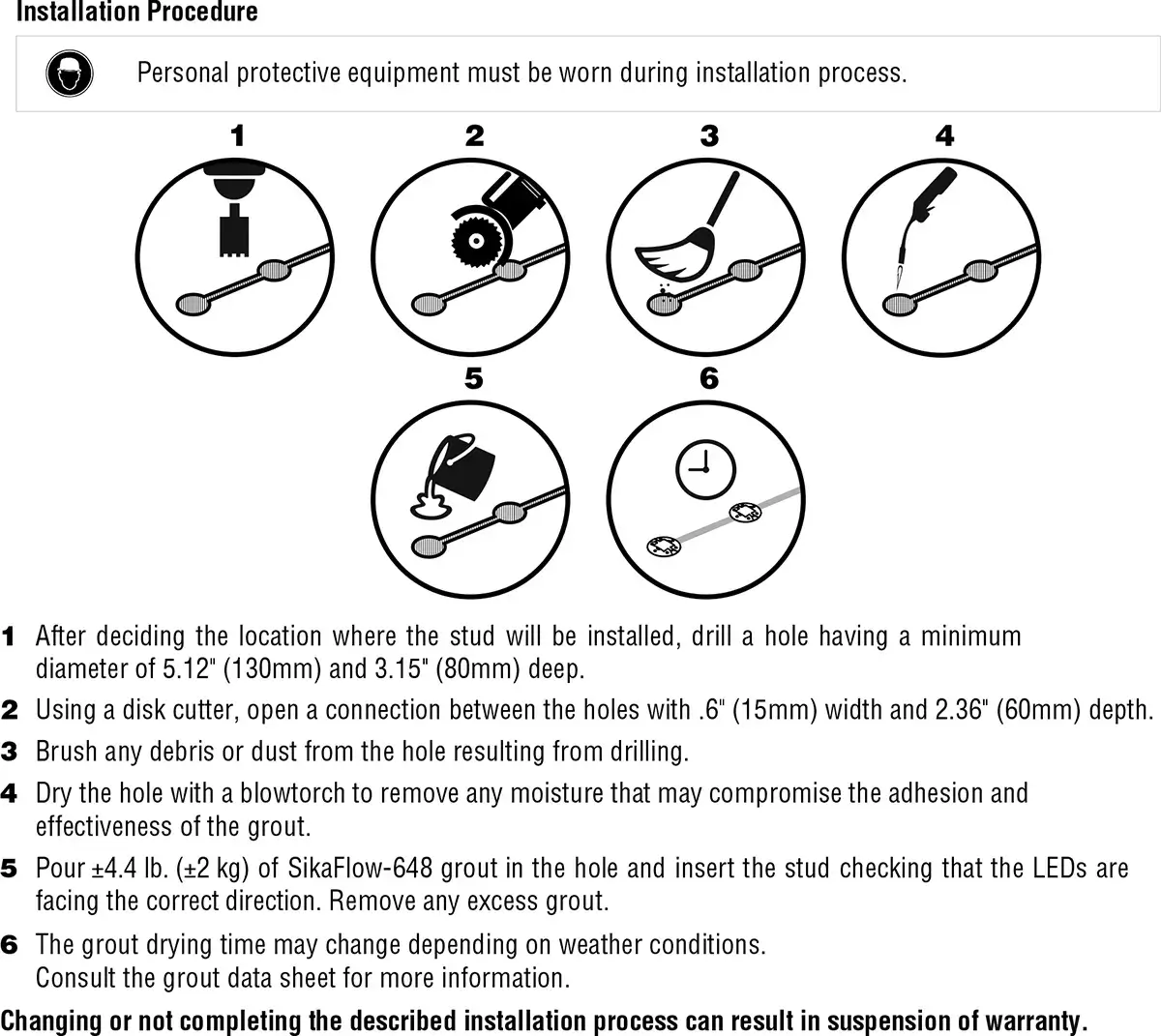

TS-SR-20VL installation instructions

Ordering Codes

Ordering Codes

TS-SR-20-VLW-1G: White
TS-SR-20-VLR-1G: Red
TS-SR-20-VLY-1G: Yellow
TS-SR-20-VLB-1G: Blue
TS-SR-20-VLG-1G: Green

• 3mt cable included.
• Standard CAP.
• 1 cable gland.
• Cable standard (included): 0.75mm² wire section.
• Different cable layouts and length should be requested upon order.
• Standard mode: Always ON. For flashing or sequential mode, a microcontroller is required.

TS-SR-20VL ordering codes
