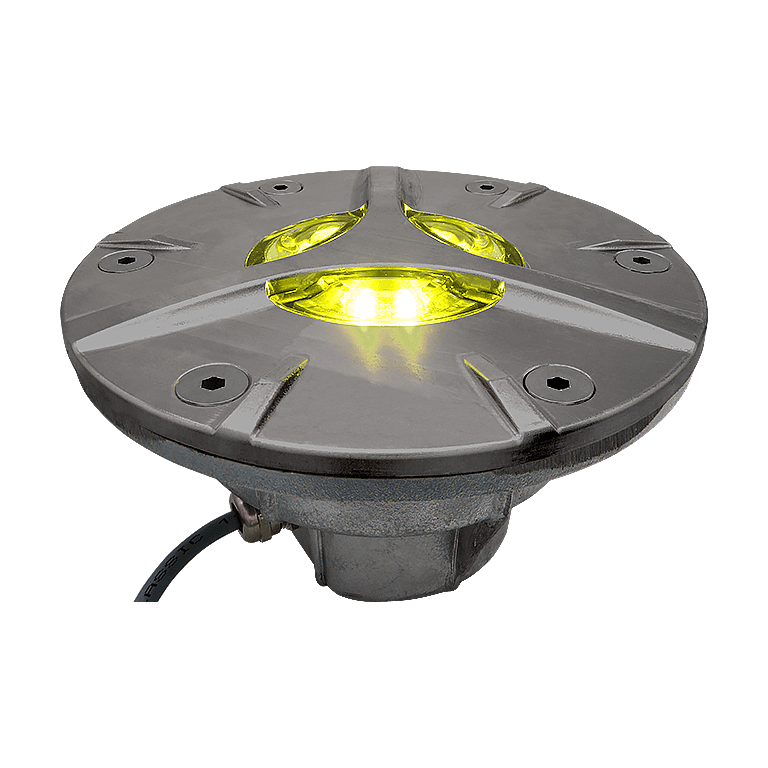

Road Guidance Light (TS-750L)

Omni-directional Aluminum LED Road Stud

  • Durable, low maintenance design
  • Aluminum construction
  • 360° high intensity, omni-directional lighting coverage
  • Cost-saving, energy-efficient LEDs
  • Download Data Sheet (PDF, 524KB)

Description

Compliances

  • IP68 Ingress Protection
  • IK10 Impact Protection
  • CE and RoHS Certified

Applications

Our TS-750L aluminum road stud features a durable, low maintenance design with outstanding visibility during the day and at night. The TS-750L is typically used to mark roundabouts, curb extensions, and school zones.

Features

  • Robust aluminum construction
  • Recessed, semi-flush mounted, does not obstruct pedestrian or vehicular movement
  • Rises only 0.6″ (15 mm) above surface
  • High static load rating (44,000 lb.) reduces likelihood of damage from vehicles
  • 360° high intensity, omni-directional lighting coverage
  • With our Dimming Controller option, the lights can be dimmed at night to reduce glare – 3 brightness levels
  • Cost-saving, energy-efficient LEDs
  • 50,000 hour LED lifetime
  • AC or DC power supply options

Specifications

  • Voltage Range: 10-32 VDC or 85-305 VAC
  • Power Consumption: DC Input = 14W; AC Input = 27W
  • Requires water resistant UL Cable, OD = 0.24″ – 0.47″ (6-12mm). Recommended AWG (varies by application): 16-3/C SOOW 600V 90C.
  • Temperature Range: -13°F/+185°F (-25°C/+85°C)
  • LED Quantity: 6 LEDs
  • Top Material: Gray painted aluminum AlSi12
  • Bottom Material: Gray painted aluminum AlSi12
  • Light Output: Polycarbonate window
  • Rising Above Surface: 0.6″ (15 mm)
  • Static Load: Holds 1,000 PSI
  • High Static Load Rating: 44,000 lb. min
  • Weight: 8.6 lb. (3.9 kg)
  • Diameter: 8.6″ (219 mm)
  • Bolt Circle: 7.25″ (184 mm)
  • Protection Index: IP68, IK10

Data Sheet

Drawings

TS-750L replacement parts


TS-750L fixture dimensions


Base Can Drawing

Ordering Codes

Ordering Codes

Fixture LED Color Power Cable Layout Options
TS-750L B: Blue
G: Green
R: Red
W: White
Y: Yellow
AC: 100-240VAC
AC3: 277VAC
DC: 10-30VDC
DCD: 10-30VDC Dimming
G1C: 1 Gland with Cable
G2C: 2 Glands with Cable[1]
G2NC: 2 Glands with No Cable[2]
NB: No Base[3]
1. G2C Layout will not support dimming option. Specify cable size so we can quote correct secondary connector.
2. G2NC Layout: Customer must supply water resistant cable. Cable connections are made inside the fixture.
3. The fixture will not be mounted to a base can.
