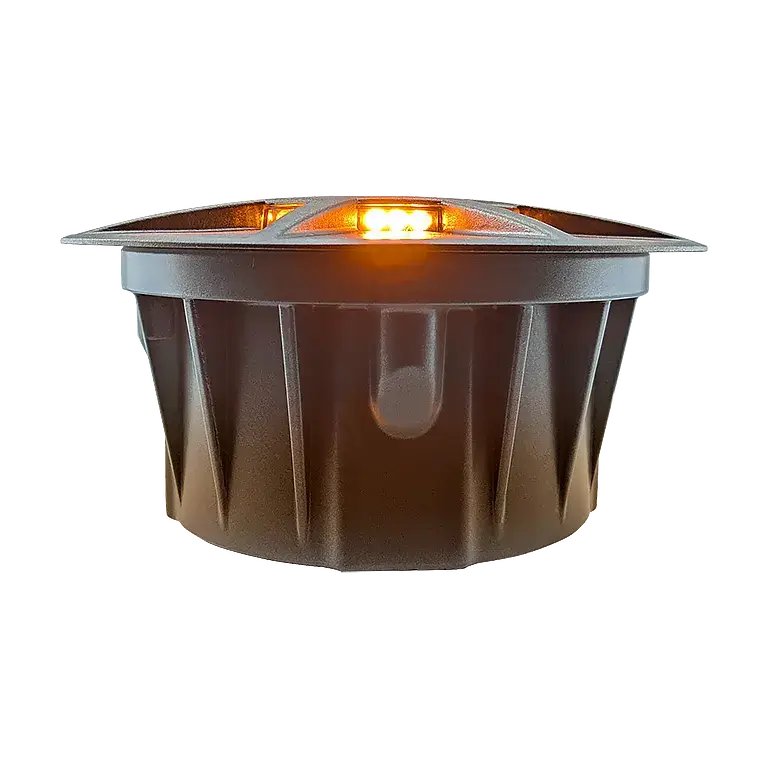

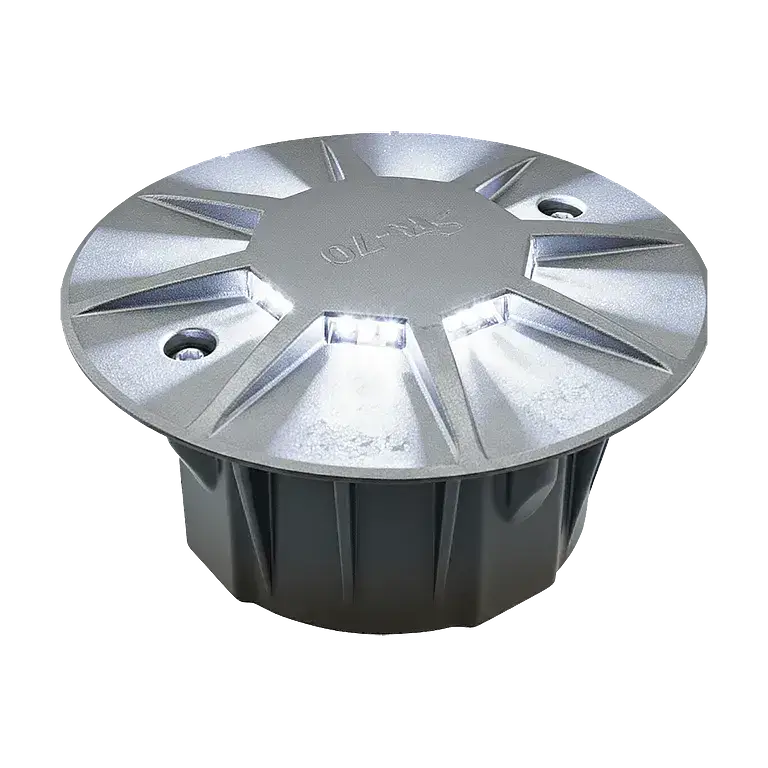

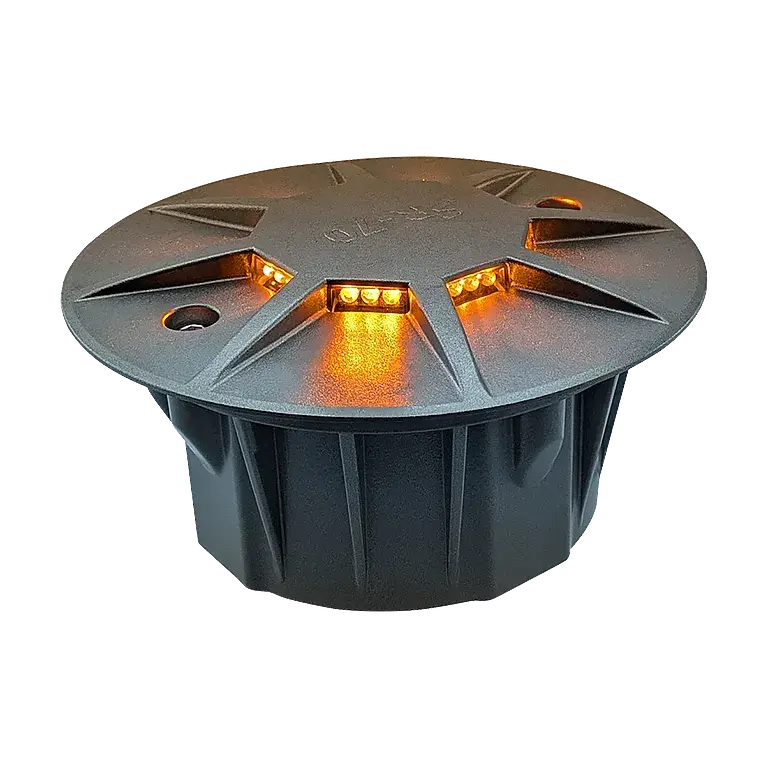

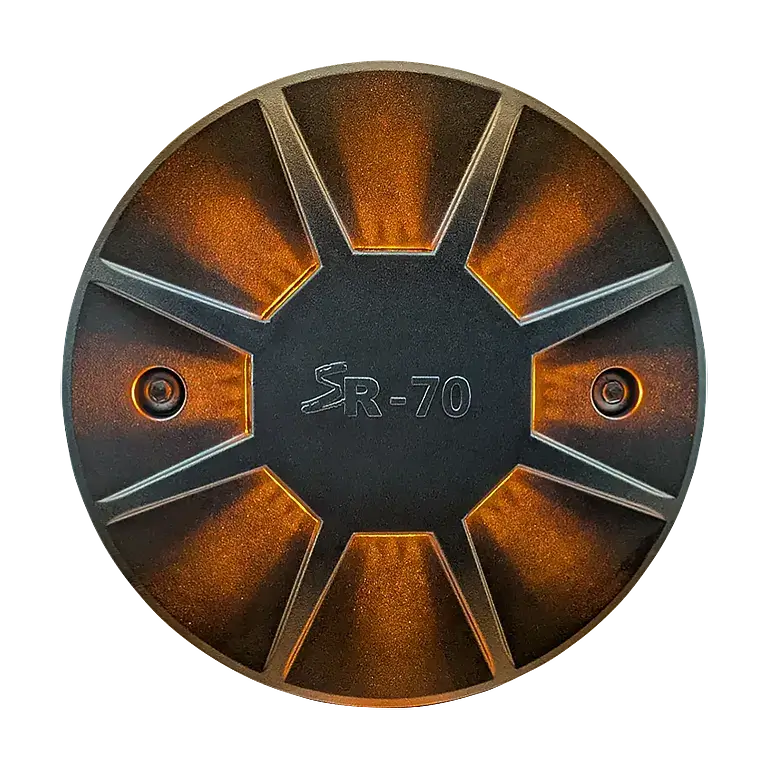

Road Guidance Light (TS-SR-70)

Omni-directional, Stainless Steel LED Road Stud

Get a Quote

Description

General Description

Our TS-SR-70 stainless steel road stud features a durable, low maintenance design with outstanding visibility during the day and at night.

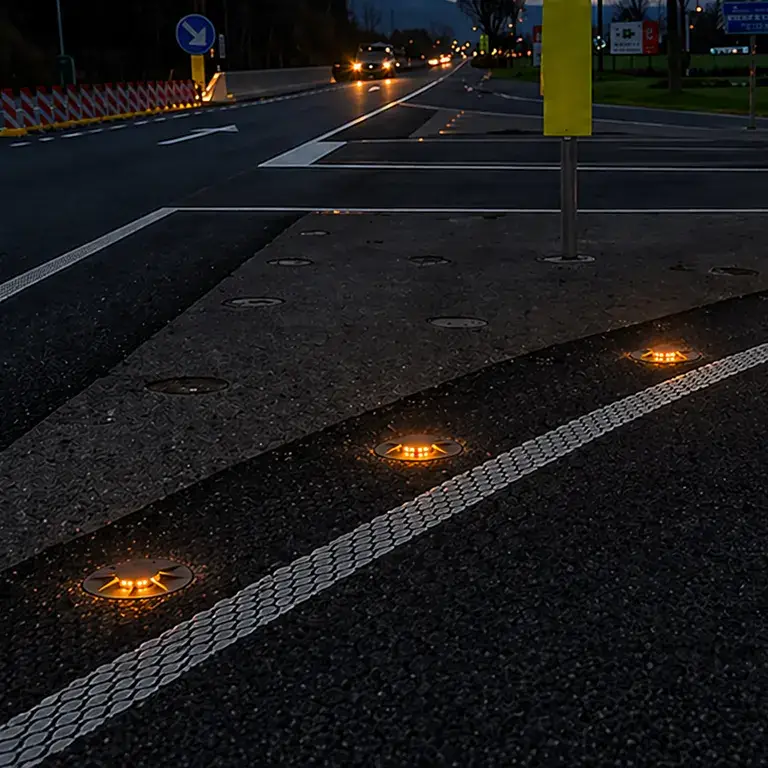

The TS-SR-70 is typically used to mark roundabouts and school zones.

Features

  • Snowplow resistant
  • Only .6″ (15.2mm) above road surface
  • 360° lighting, internal prismatic system
  • Highly resistant to impact and corrosion
  • Robust construction, suitable for harsh conditions
  • Connect multiple road studs in series circuit
  • Outstanding visibility during the day and at night
  • Up to .62 mile (1 km) visibility distance due to high intensity LEDs
  • Suitable for marking roundabouts and school zones
  • Low maintenance, 100% waterproof

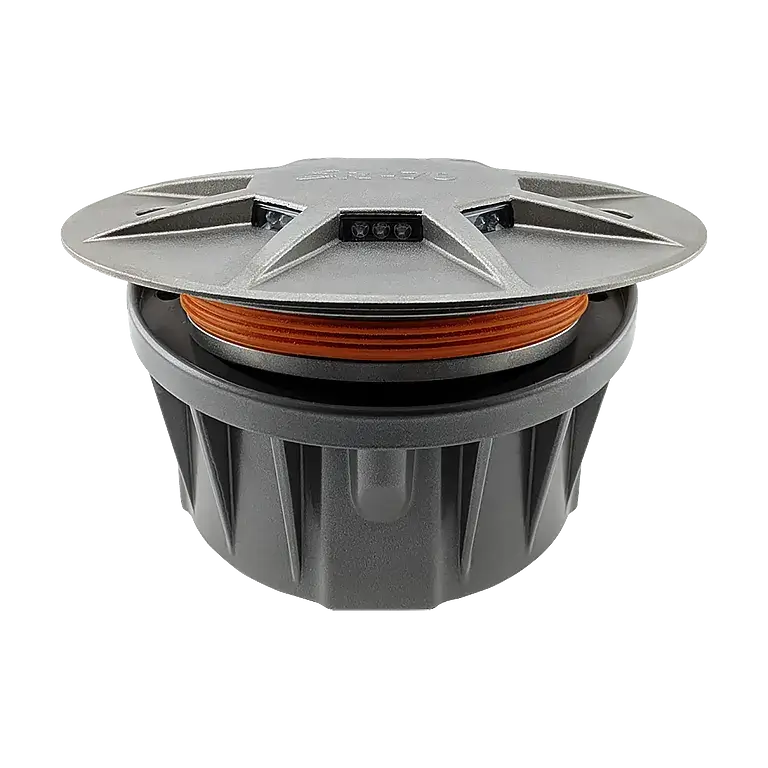

  • Easy replacement: base (fixed in the pavement), main body (removable)
  • LEDs protected by polycarbonate window
  • Optional: use different LED colors in each window
Get a Quote

Data Sheet

How to Specify

Specifications

Modes of Operation:

  • Always On (other modes of operation like flashing or sequential are available with external controller)

LED Configuration:

  • Multidirectional

Electrical:

  • Power Supply: 12V DC or 24V DC
  • Current Consumption: 160 mA
  • Power Cable: Brown Wire (+), Blue Wire (–)
  • Working Temperature: -13°F to +185°F (-25°C to +85°C)

Optical:

  • LED Number: 24 LEDs
  • LED Type: 5mm

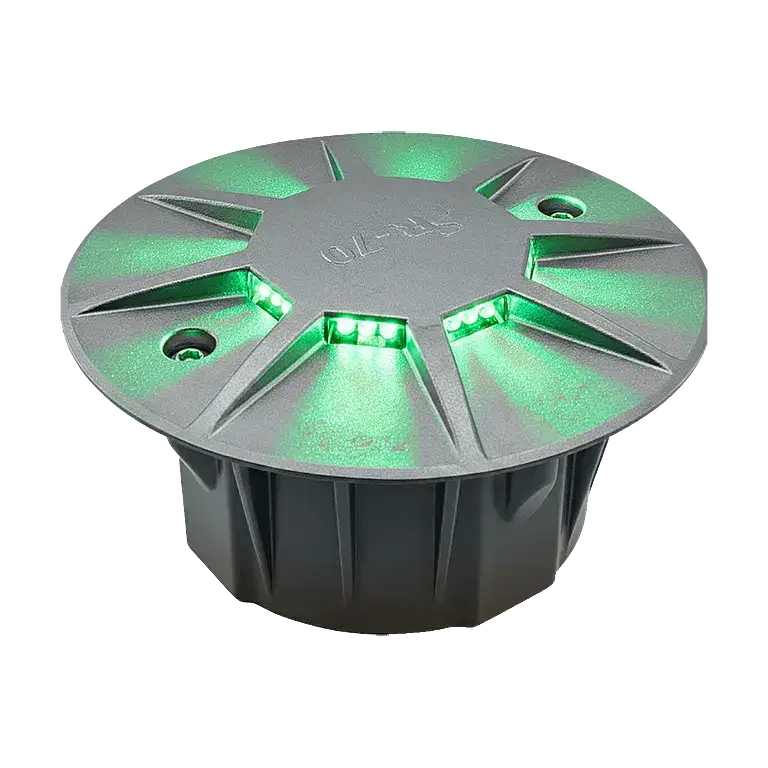

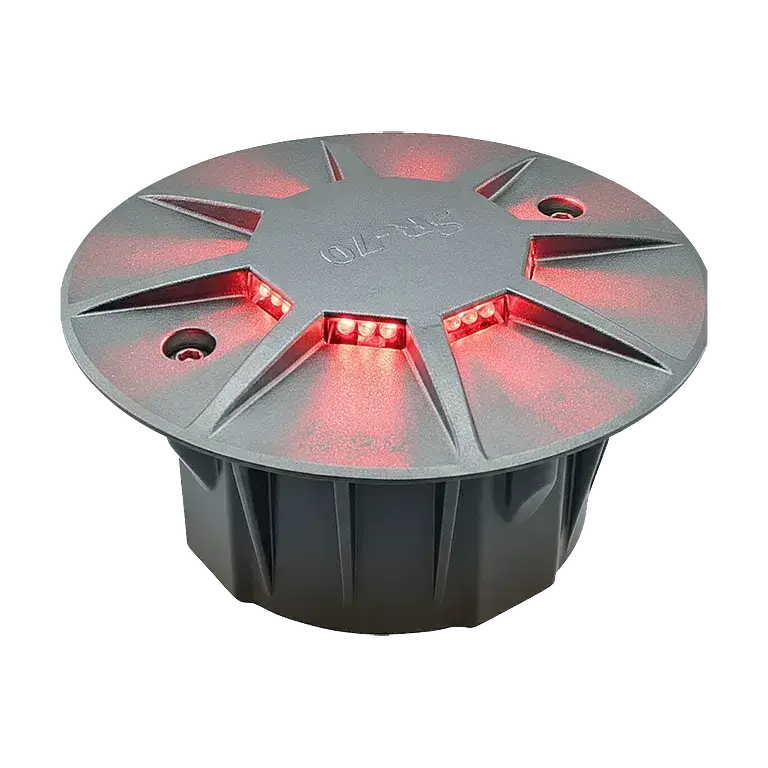

  • LED Colors: White, Red, Yellow, Green, Blue
  • Viewing Angle: 15°

Mechanical:

  • Main Body: Stainless Steel League
  • Base: Aluminium
  • Mechanical Resistance: 135 tons
  • Weight: 7.7 lb. (3.5 kg)
  • Protection Index: IP68, IK10
  • Dimensions: 7.48″ (190mm) diameter x 4.24″ (107.7mm) height

Other Versions
TS-SR-70P:

  • 8 high power LEDs (1W) for maximum brightness (day and night)
  • Specially developed heat sink to increase LED lifetime.
  • Viewing Angle: 16°
  • Power Supply: 24V DC (400 mA max)

TS-SR-70RGB:

  • 8 high power LEDs (1W) for maximum brightness (day and night)
  • Multiple colors in one road stud.
  • LED Colors: Red, Green, Blue, White
  • Viewing Angle: 16°

Drawings

TS-SR-70 led configuration

TS-SR-70 cable layout

TS-SR-70 drawings

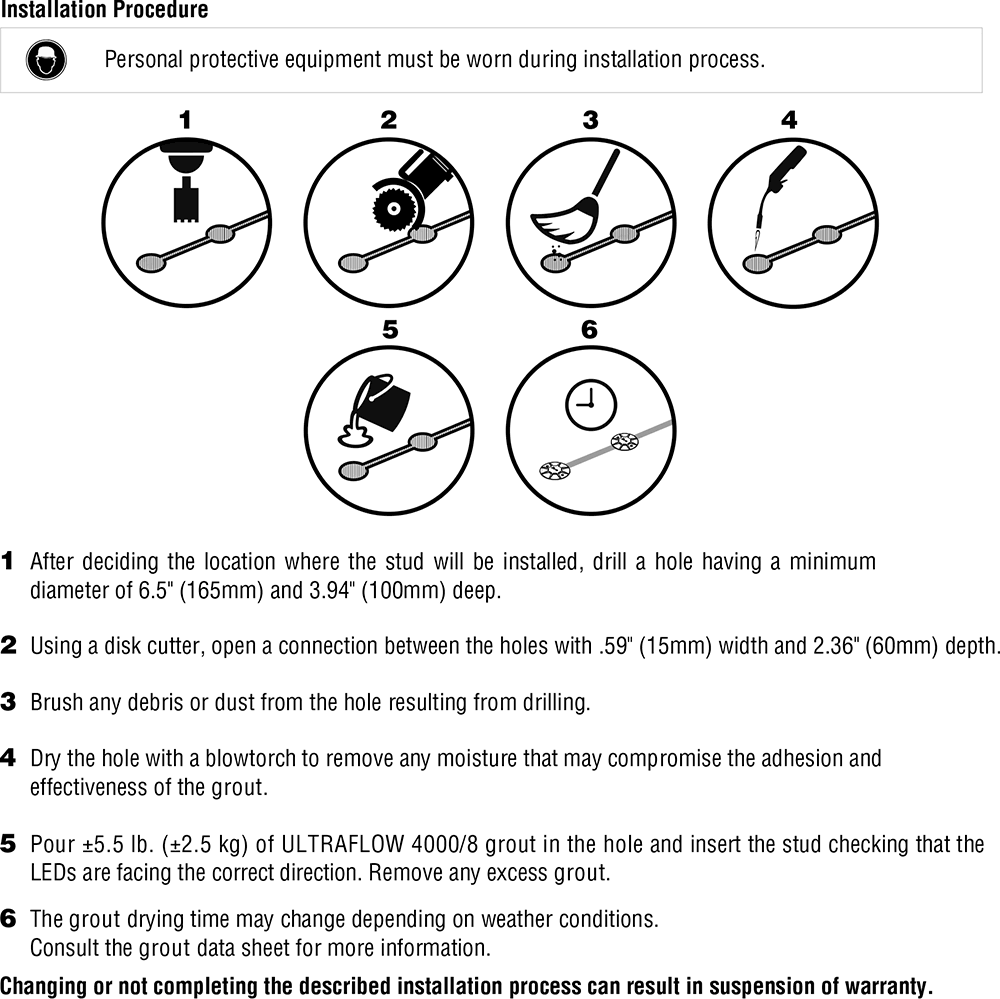

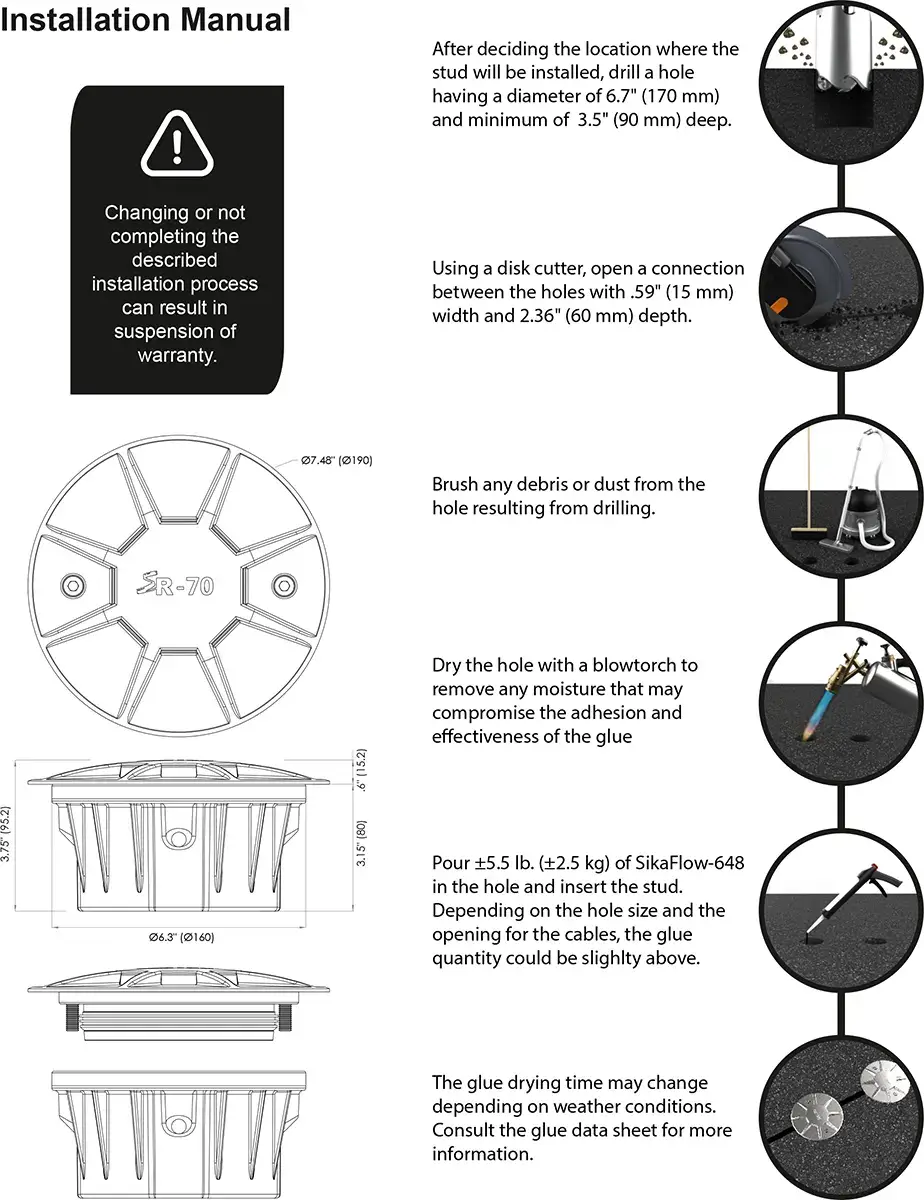

TS-SR-70 installation

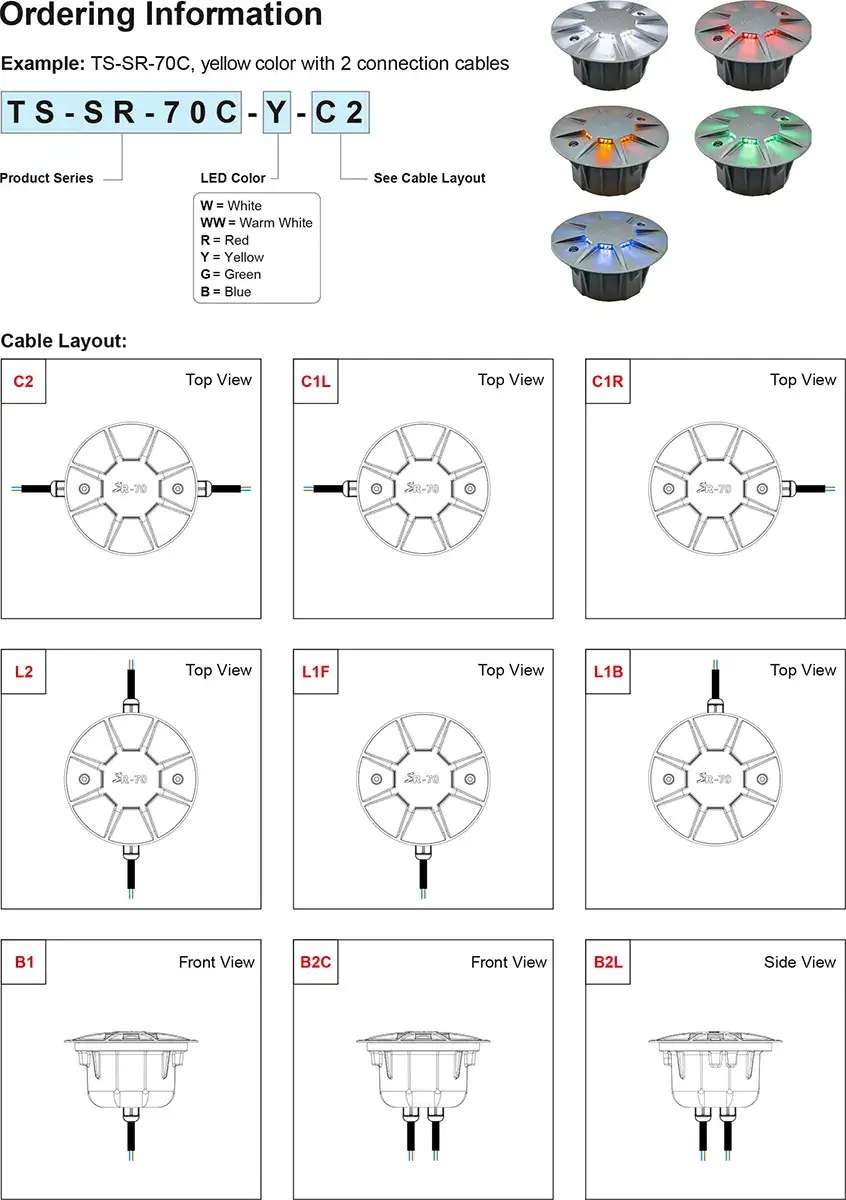

Ordering Codes

Ordering Codes

Stainless Steel, 24 LED
TS-SR-70-W-1G: Stainless Steel, 24 LED, White
TS-SR-70-R-1G: Stainless Steel, 24 LED, Red
TS-SR-70-Y-1G: Stainless Steel, 24 LED, Yellow
TS-SR-70-B-1G: Stainless Steel, 24 LED, Blue
TS-SR-70-G-1G: Stainless Steel, 24 LED, Green

Stainless Steel, 8 LED
TS-SR-70P-W-1G: Stainless Steel, 8 LED, White
TS-SR-70P-R-1G: Stainless Steel, 8 LED, Red
TS-SR-70P-Y-1G: Stainless Steel, 8 LED, Yellow
TS-SR-70P-B-1G: Stainless Steel, 8 LED, Blue
TS-SR-70P-G-1G: Stainless Steel, 8 LED, Green

• 3mt cable included.
• 1 cable gland.
• Cable standard (included): 0.75mm² wire section.
• Different cable layouts and length should be requested upon order.
• Standard mode: Always ON. For flashing or sequential mode, a microcontroller is required.

TS-SR-70 ordering codes

TS-SR-70 ordering codes
