Pedestrian Detection Photo-Sensor Bollards

  • Passive detection, no pedestrian input required.
  • Vandal-proof stainless steel fasteners.
  • Quick and easy installation.
  • Rugged design.
  • Download Data Sheet (PDF, 287KB)

Description

General Description

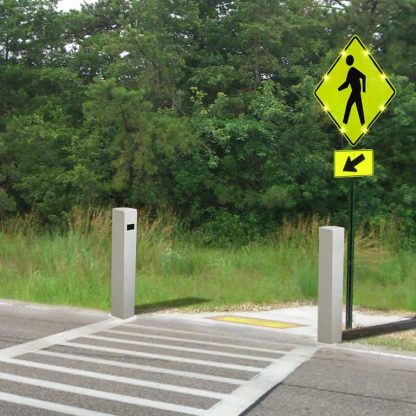

Our Photo-Sensor Bollard is a passive detection device used to trigger in-pavement crosswalk lights or LED pedestrian signs used with the TS1250 crosswalk lighting system. Typically, a pair of bollards is placed at each end of a crosswalk. When a pedestrian passes between the two bollards, an IR light beam is ‘broken’, and the crosswalk lighting system is activated.

Features

  • Passive detection, no pedestrian input required.
  • Directionally sensitive IR sensor only activates when pedestrian enters crosswalk, not when he or she exits.
  • Easy sensor alignment via independent swivel mounts.
  • Vandal-proof stainless steel fasteners.
  • Quick and easy installation.
  • Rugged design.

Pedestrian Detection Photo Sensor Bollard drawings

bollard colors

Data Sheet

Videos


Pedestrian Detection Photo-Sensor Bollards
Four Pedestrian Detection Photo-Sensor Bollards installed at an office building in Dallas, TX.

Specifications

Specifications

  • Size: 7″W x 42″H x 4.5″D
  • 12VDC power input
  • Aluminum enclosure thickness: 0.125″
  • Enclosure color: white, silver or black powder-coated
  • Mounted via concrete anchor bolts
  • Minimum height to trip the sensor: 42″
  • Maximum 25′ separation
  • Part #: TS-Bollard
