Dura-Post® Delineator

  • One-piece tapered urethane design.
  • Flexible over a wide temperature range.
  • High-intensity prismatic reflective sheeting with 360° visibility.
  • Download Data Sheet (PDF, 208KB)

Description

General Description

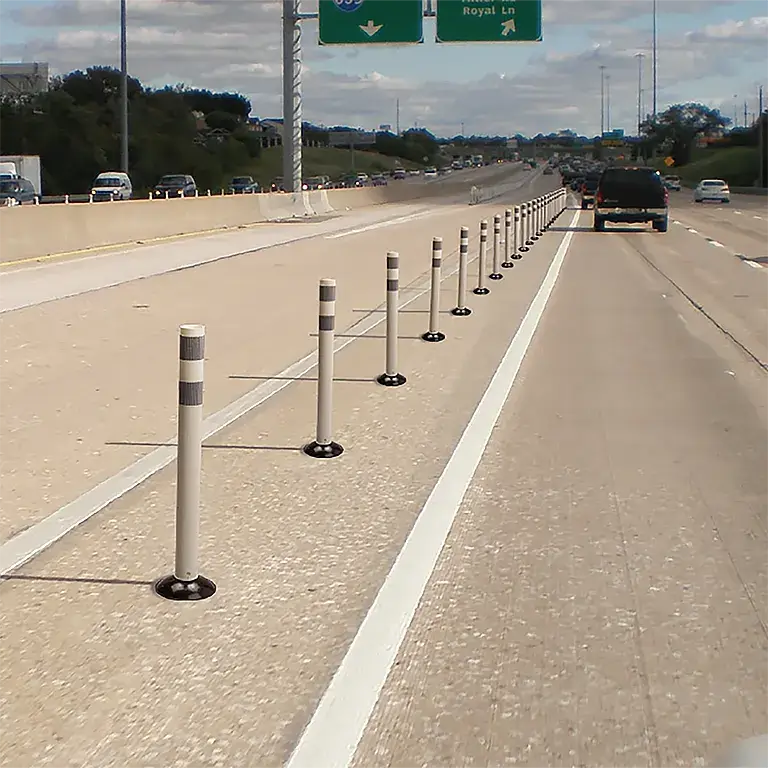

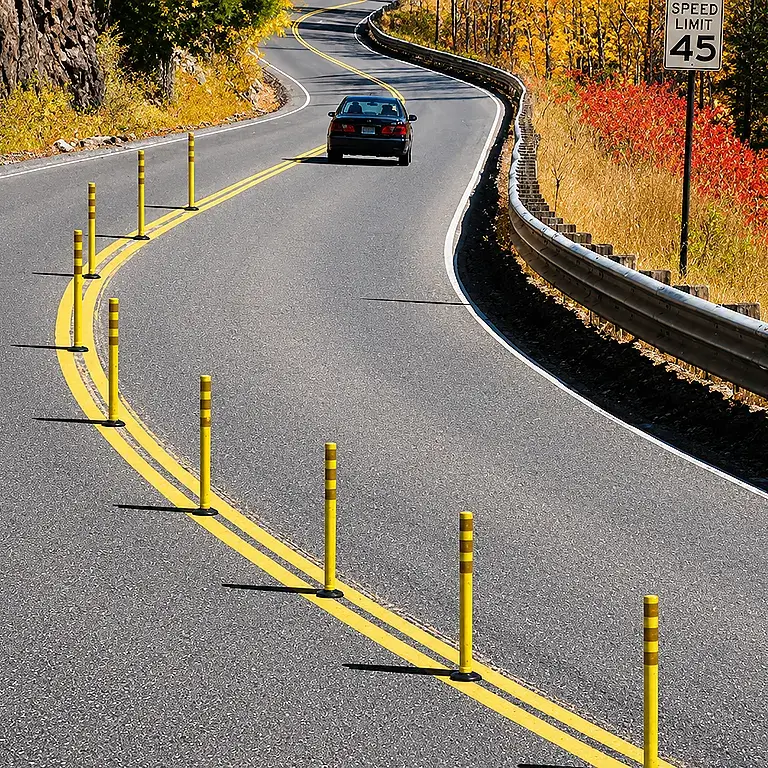

The Dura-Post® delineator is an injection molded urethane flexible post designed to withstand frequent high speed impacts. It is self-certified as NCHRP Report 350 and MASH Category 1 Devices, and tested to NTPEP. It can be configured to MUTCD for delineators, channelizing devices, and tubular markers. The Dura-Post® delineator post is best utilized in locations with high speed/high impact frequency and is ideal for assembly in construction zones, heavy traffic areas, bridges, and HOV/HOT lane demarcation.

Features

  • Tapered one piece urethane design.
  • Round post design can provide increased visibility in up to 360° direction.
  • Designed to remain flexible over a wide temperature range.
  • High intensity, flexible prismatic reflective sheeting standard.

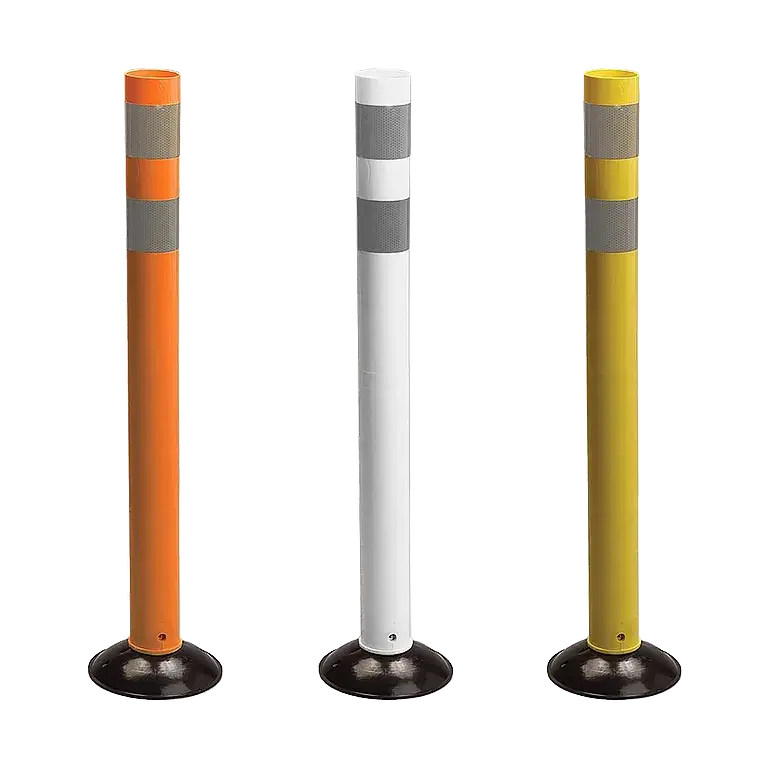

  • Standard post colors: white, yellow, orange.
  • Standard reflective colors: silver, amber, orange.
  • Custom post colors: blue, green, black, red, dark gray, light gray, yellow-green.
  • Various heights available.

Base and Anchor Options

  • Surface mounts for asphalt or concrete
  • Soil anchor
  • Bolt down, epoxy, or butyl pads

Assembly and Maintenance

  • Post sub fits in base or anchor socket.
  • Designed to last longer than standard delineators.
  • Single retaining pin for installation or replacement.

Data Sheet

Specifications

Specifications

  • 36″ high (various heights available)
  • 3″ post diameter
  • 2.11 lb (0.95 kg)
  • 8″ base diameter

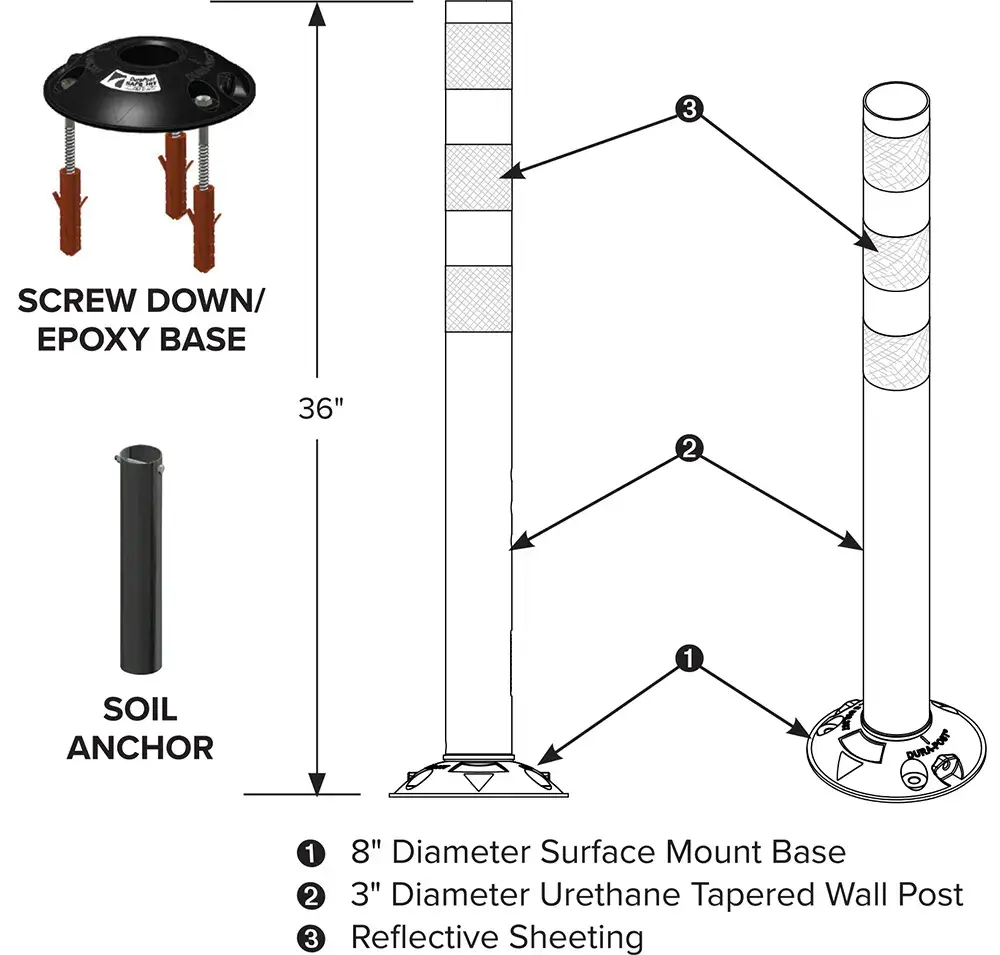

Drawings

Dura-Post Delineator features
