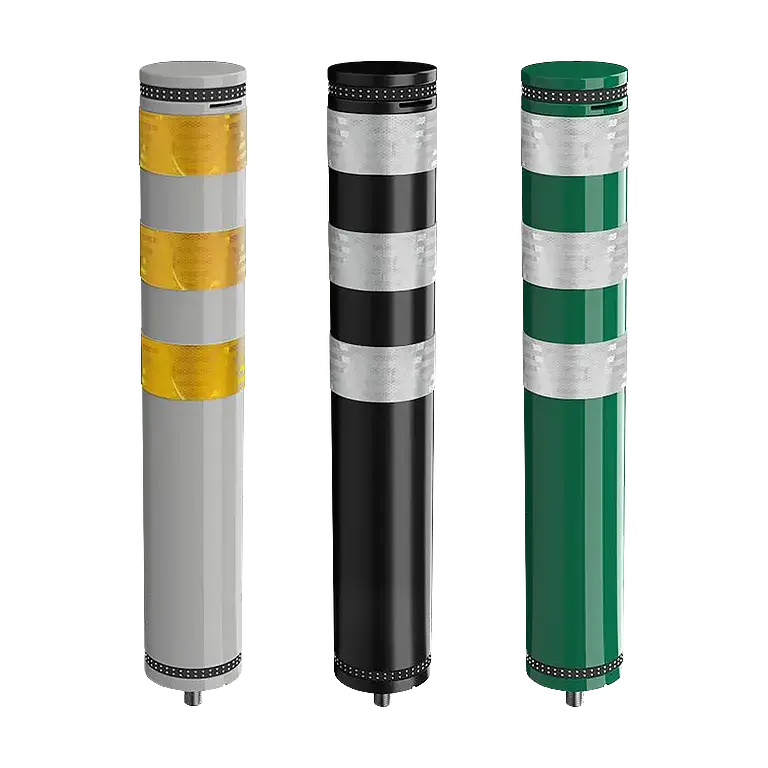

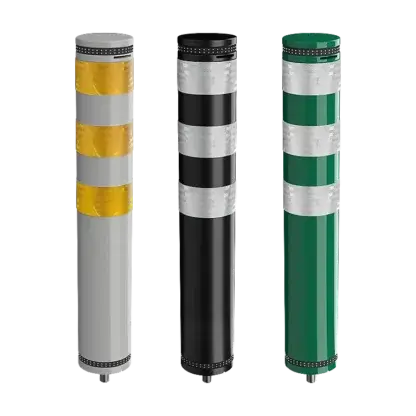

TS-SR-BALI-LF Flexible Bollard

  • 3M reflective tape with high reflectivity
  • Bounces back and returns to original position after impacts.
  • Resistant to light and heavy vehicles.
  • Easy installation.
  • Download Data Sheet (PDF, 470KB)

Description

Key Features

  • Certified to EN 12899-3
  • Flexible bollard with shape memory and impact resistance
  • Ideal for traffic channelization and roadway delineation
  • Designed to withstand impacts from light and heavy vehicles
  • Returns to its original shape almost instantly
  • UV protection for greater durability
  • 3M reflective tape for greater visibility at night
  • Glass reflector bands at the top and bottom
  • Multiple color options for a variety of applications
  • Easy installation

Mechanical Features

  • Main Body/Base Material: PU
  • Mounting Screw: Galvanized Steel
  • Anchor Material: Aluminum
  • Main Body/Base Colors: Black (other colors available by request)
  • Reflective Tape: 3M Reflective Tape
  • Reflective Tape Colors: White or Yellow
  • Glass Reflector Band Colors: Black with white crystals

Data Sheet

Specifications

Bollard (TS-SR-BALI-LF) Measurements

  • Height: 31.5″ (800 mm)
  • Diameter: 5.12″ (130 mm)
  • Weight: 7.38 lb (3.350 kg)

Anchor (TS-SR-A6050) Measurements

  • Height: 2.36″ (60 mm)
  • Diameter: 1.97″ (50 mm)
  • Material: Aluminum
  • Weight: 0.36 lb (0.166 kg)

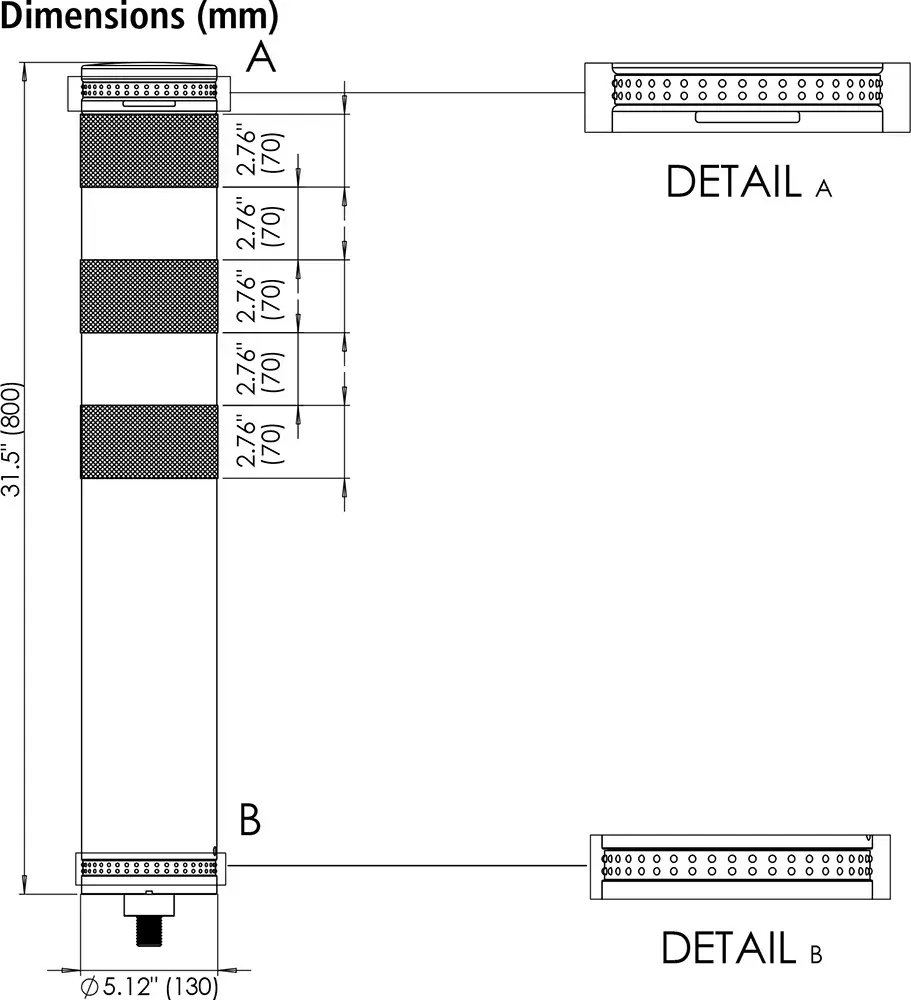

TS-SR-BALI-LF Flexible Bollard dimensions

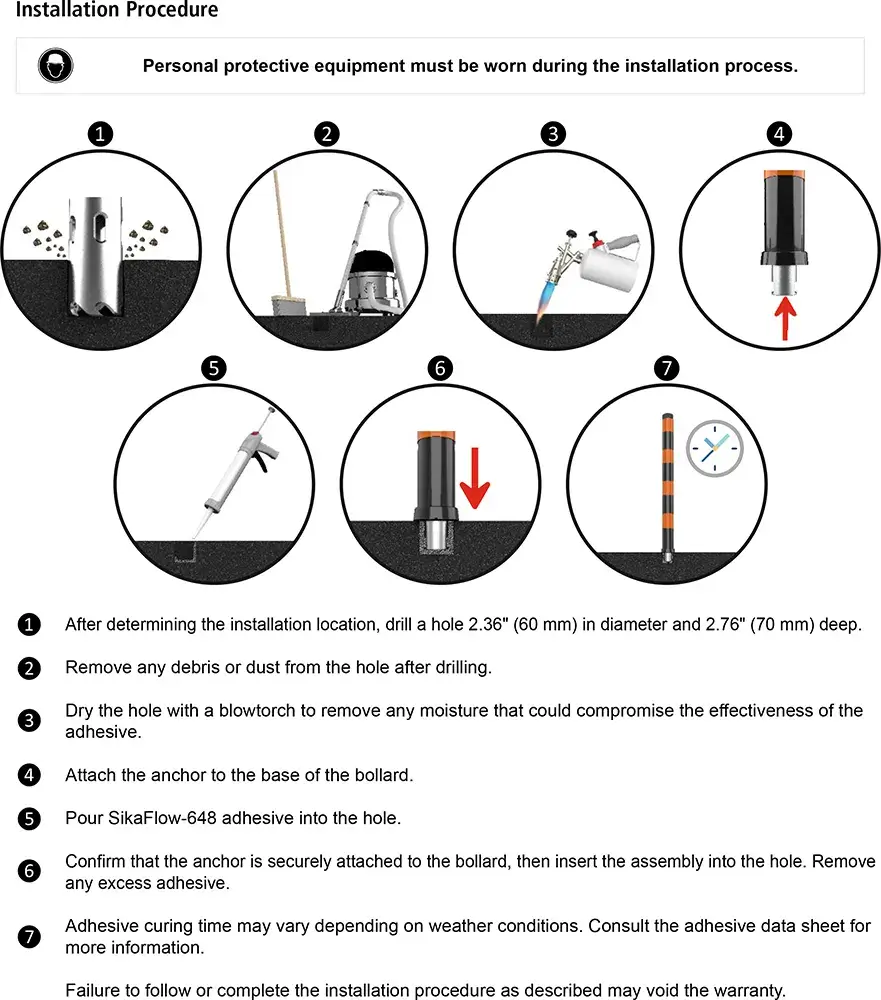

Installation

TS-SR-BALI-LF Flexible Bollard installation
