Description
General Description

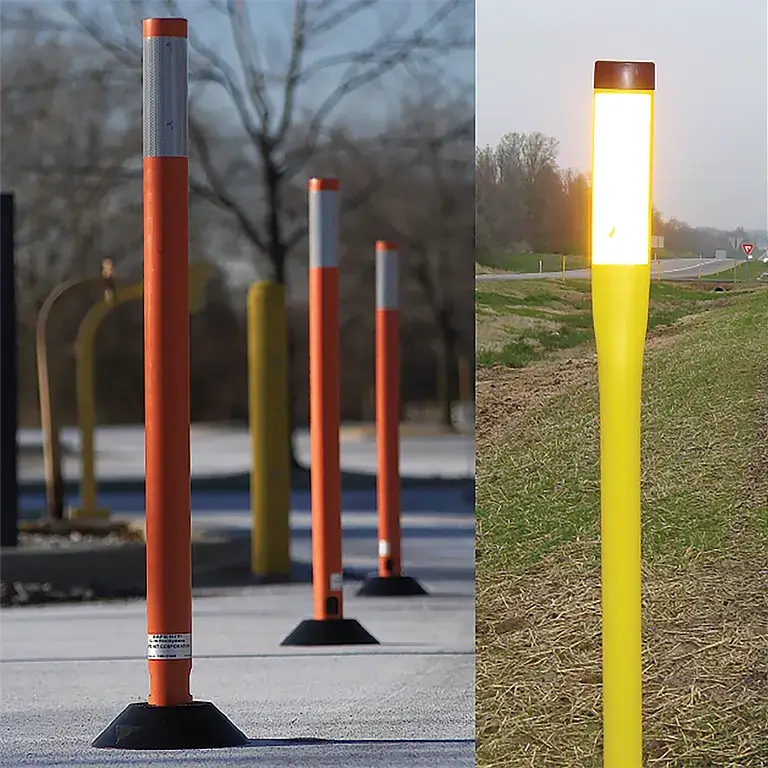

The Safe-Hit® Delineator Post is constructed of flexible and durable co-extruded polyethylene with ultraviolet inhibitors. It is self-certified as a NCHRP Report 350 and MASH Category 1 Device, and tested to NTPEP. It can be configured to MUTCD requirements for delineators or channelizing devices. The Safe-Hit® Delineator Post is ideal for roadside or lane line applications.
Assembly and Maintenance
- Lightweight delineator post.
- Two-piece, self-locking system helps reduce installation and replacement time.
Features
- Multiple base anchor options and portable bases.
- Surface mount bases ideal for asphalt or concrete.
- Soil anchors work in a wide range of soil types.
- Portable bases available in 18 lb and 32 lb.
- Ultraviolet (UV) resistant post.
- Round post design can provide increased visibility in up to 360° direction.

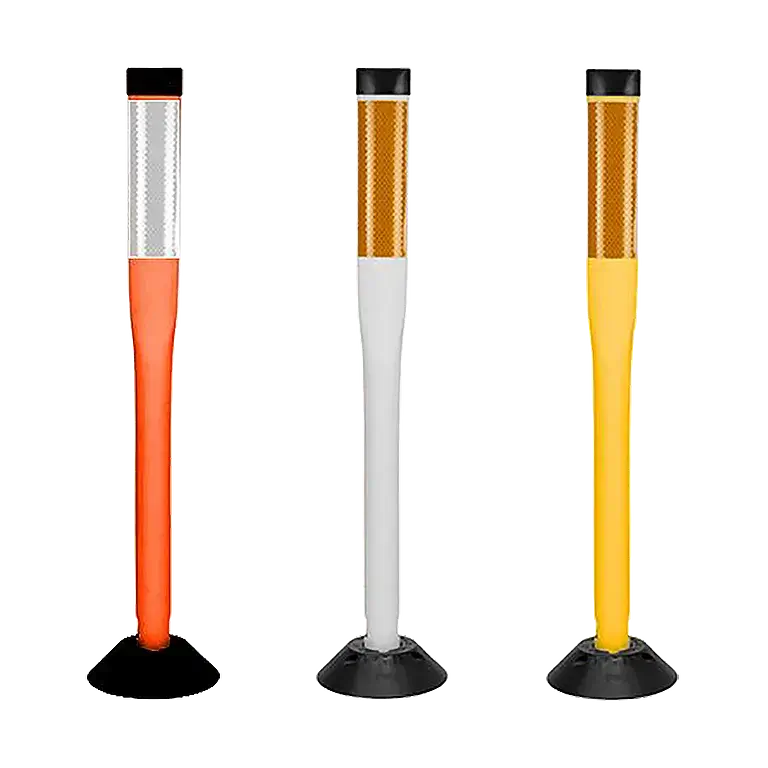

- Standard post colors: white, yellow, and orange.
- Standard reflective colors: silver, amber, and orange.
- Custom colors available.
- Heights range from 18″ to 54″ above grade.

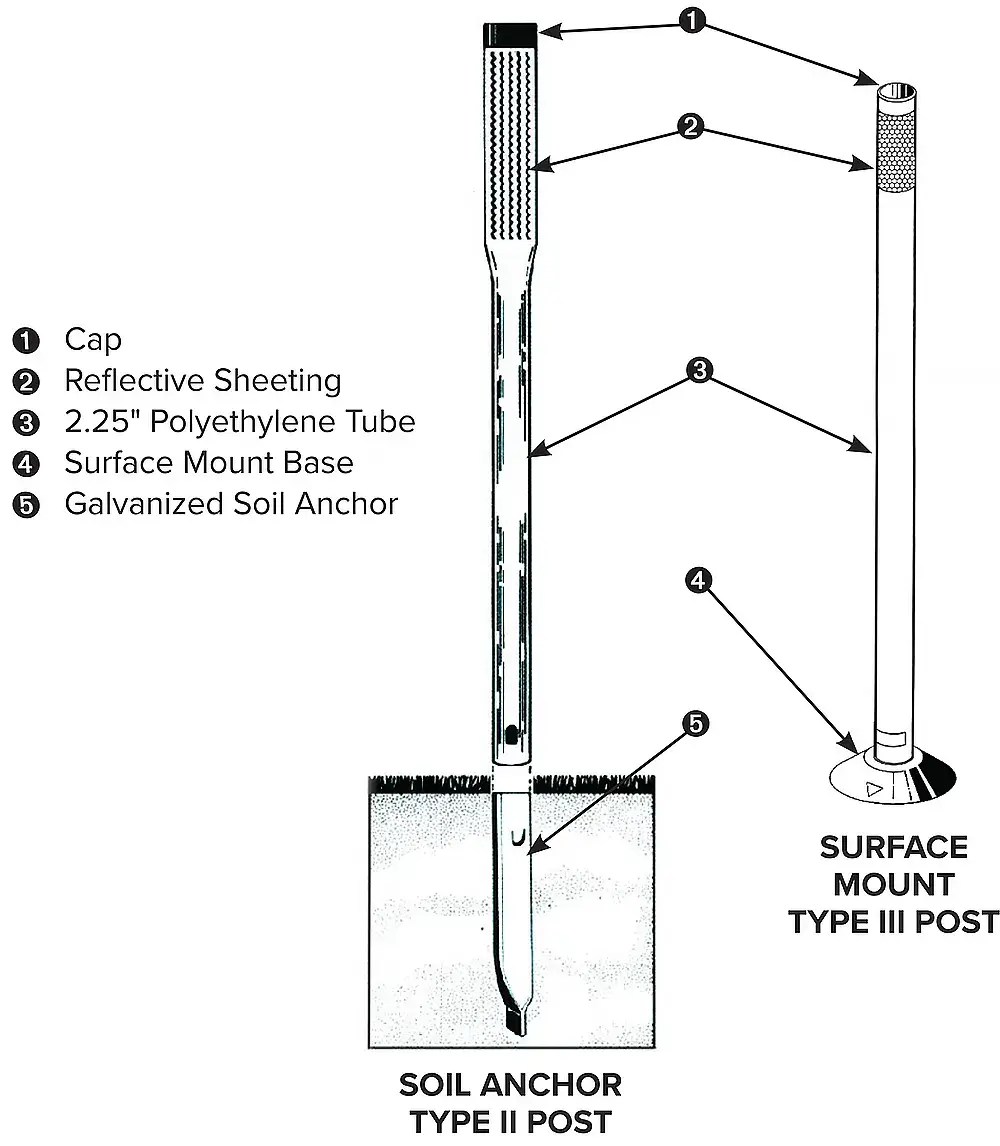

Surface Mount, Soil Anchor, or Guardrail Post Type
- Multiple configurations with either flat top or round top to fit various applications.

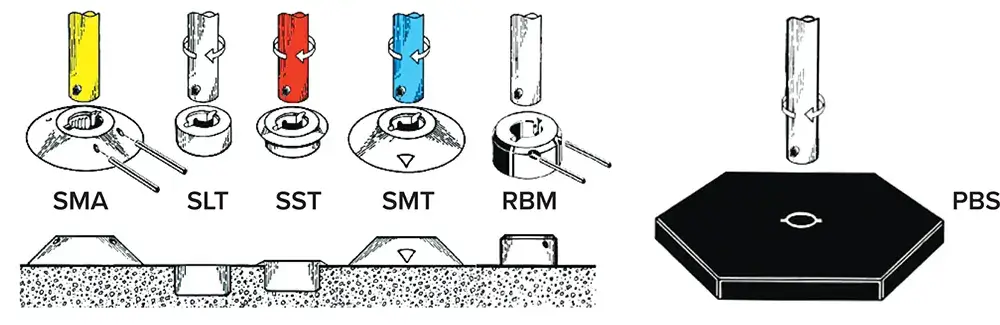

Surface Mount Base Options
- Surface mount pin lock base
- Surface mount twist lock base
- Sub-level twist lock base
- Sub-surface twist lock base
- Portable base
Soil Anchor Options
- Open-end galvanized anchor
- Closed-end galvanized anchor
- 8″, 14″, 18″, and 24″ anchor lengths available for different soil conditions.
