TS-SR-BALI Flexible Bollard

  • 3M reflective tape with high reflectivity

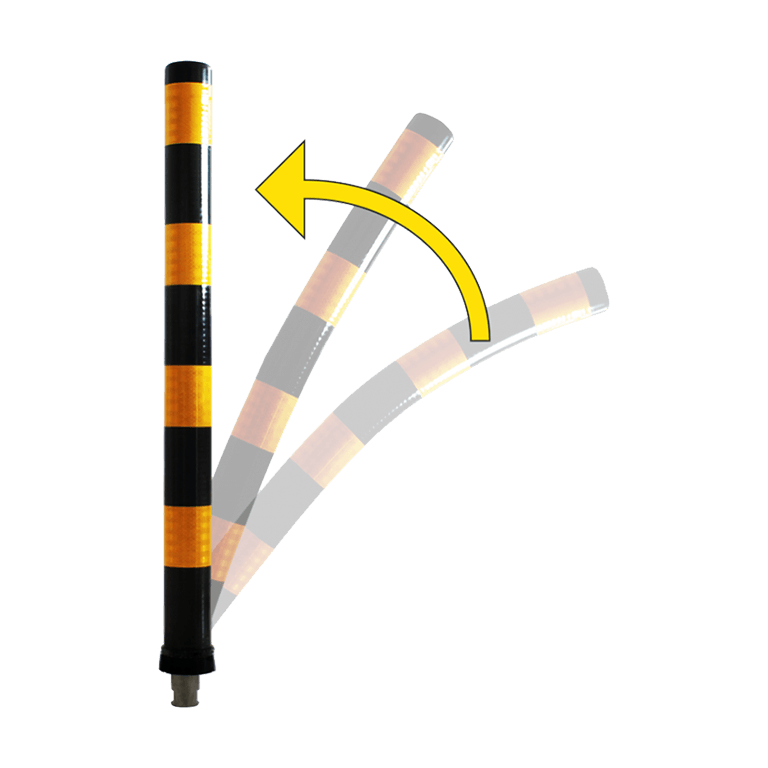

  • Bounces back and returns to original position after impacts.
  • Resistant to light and heavy vehicles.
  • Easy installation.

Description

Features

  • Flexible bollard bounces back and returns to original position after impacts.
  • Ideal for area delimitation and road delineation.
  • Resistant to light and heavy vehicles.
  • UV protection for greater durability.
  • 3M reflective tape with high reflectivity for greater visibility at night.
  • Optional ribbons with glass reflector elements.
  • Many colors and sizes for a wide variety of applications.
  • Easy installation.

Mechanical Features

  • Main Body/Base Material: PU
  • Mounting Screw: Galvanized Steel
  • Anchor Material: Aluminum or Galvanized Steel
  • Main Body/Base Colors: Black, Grey (RAL 7040) and white (other colors available by request)
  • Reflective Tape: 3M Reflective Tape
  • Reflective Tape Colors: White or Yellow
  • Glass Reflector Ribbons Colors: Black with white crystals.

Data Sheet

Specifications

TS-SR-BALI dimensions


TS-SR-BALI drawings

Installation

TS-SR-BALI installation

Ordering Codes

Ordering Codes

45cm Height with 2 Amber Reflective Tapes (5cm tall)
TS-SR-BALI-045-BB-2A: Black/Black
TS-SR-BALI-045-BC-2A: Black/Gray (C)
TS-SR-BALI-045-BW-2A: Black/White

65cm Height with 3 Amber Reflective Tapes (5cm tall)
TS-SR-BALI-065-BB-3A: Black/Black
TS-SR-BALI-065-BC-3A: Black/Gray (C)
TS-SR-BALI-065-BW-3A: Black/White

80cm Height with 3 Amber Reflective Tapes (5cm tall)
TS-SR-BALI-080-BB-3A: Black/Black
TS-SR-BALI-080-BC-3A: Black/Gray (C)
TS-SR-BALI-080-BW-3A: Black/White

100cm Height with 4 Amber Reflective Tapes (10cm tall)
TS-SR-BALI-100-BB-4A: Black/Black
TS-SR-BALI-100-BC-4A: Black/Gray (C)
TS-SR-BALI-100-BW-4A: Black/White

• Standard Main Body colors [Black; Gray (RAL 7040) and White] with Black Base (no minimum quantities).
• Standard Main Body colors (Gray (RAL 7040) and White) with the same Base color: minimum order quantity: 300pcs.
• Other colors (Main Body/Base): minimum order quantity: 500pcs.
• Base Color/Main Body: Black (Base) / Black (Tube): TS-SR-BALI-XXX-BB-XX-XX-XX
• Reflective tape: 3 Amber reflective tapes: TS-SR-BALI-XXX-XX-3A-XX-XX
• Reflective tape colors: Amber, White
• Glass Elements: Black Plastic Tape with White Glass Elements: TS-SR-BALI-XXX-XX-XX-BW-XX
• Anchor Options:
– TS-SR-BALI-XXX-XX-XX-BW-A1: Ø22x120mm / TS-SR-A12022 (Standard)
– TS-SR-BALI-XXX-XX-XX-BW-A2: Ø50x60mm / TS-SR-A6050
– TS-SR-BALI-XXX-XX-XX-BW-A3: Ø22x116mm / TS-SR-S11622 (Galvanized Steel)


TS-SR-BALI ordering
