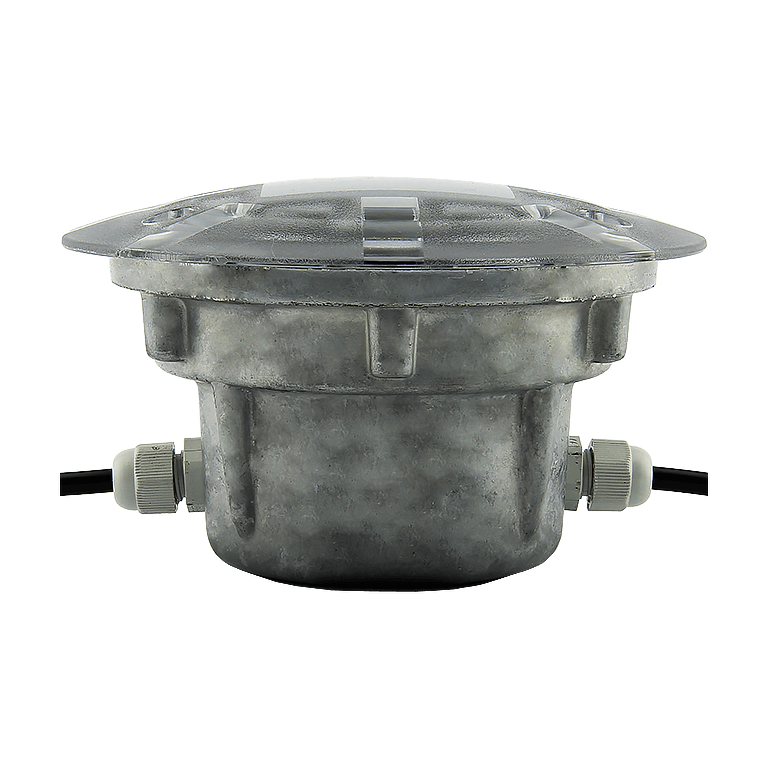

Bicycle Path Light (TS-SR-35C)

360° Hardwired LED Road Stud

  • 360° lighting, internal prismatic system
  • Low maintenance, 100% waterproof
  • Wired system that can be powered by electric or solar energy

Description

Features

  • Well-suited for road areas with cycling infrastructures and pedestrian zones
  • Bicycle friendly, only .67″ (17mm) above road surface
  • High brightness during day and night
  • Low maintenance, 100% waterproof
  • 360° lighting, internal prismatic system
  • Connect multiple road studs in series circuit
  • Wired system that can be powered by electric or solar energy
  • Low power consumption
  • Many LED color options available for a wide variety of applications

Data Sheet

How to Specify

Specifications

Modes of Operation:

  • Always On (other modes of operation like flashing or sequential are available with external controller)

LED Configuration:

  • Multidirectional

Electrical:

  • Power Supply: 12V DC or 24V DC
  • Maximum Current Consumption: 160 mA (depends on LED configuration)
  • Power Cable: Brown Wire (+), Blue Wire (–)
  • Working Temperature: -13°F to +185°F (-25°C to +85°C)

Optical:

  • LED Quantity: 16 LEDs
  • LED Type: 5mm
  • LED Colors: White, Red, Yellow, Green, Blue
  • Viewing Angle: 15°

Mechanical:

  • Material: Aluminum and Polycarbonate
  • Mechanical Resistance: 18 tons
  • Weight: 2.2 lb. (1 kg)
  • Protection Index: IP68, IK10
  • Dimensions: 5.71″ (145mm) diameter x 3.5″ (89mm) height

Drawings

TS-SR-35C led configuration

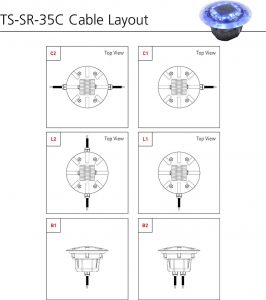

TS-SR-35C cable layout

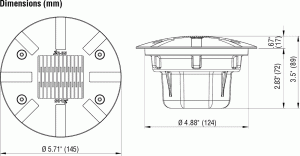

TS-SR-35C dimensions

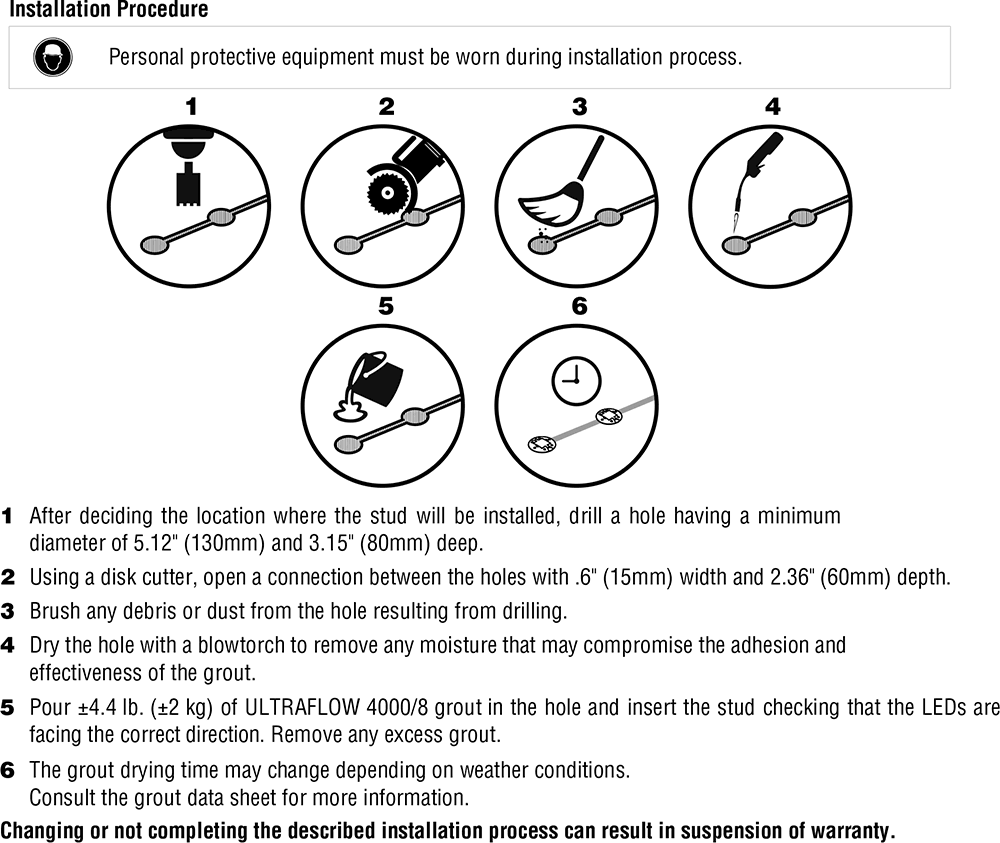

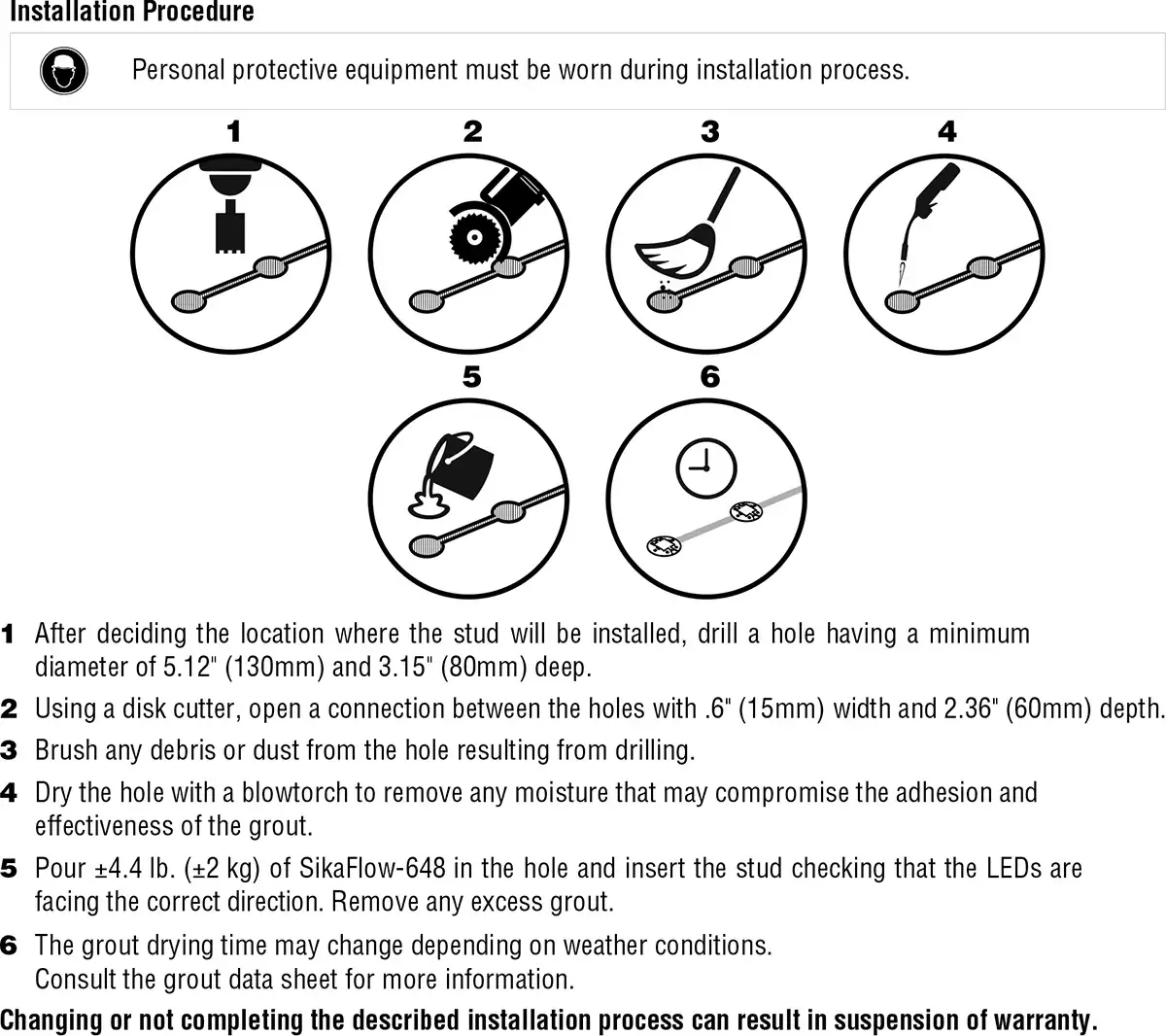

TS-SR-35C installation

Ordering Codes

Ordering Codes

TS-SR-35C-8W-1G: 8 LED, White
TS-SR-35C-8R-1G: 8 LED, Red
TS-SR-35C-8Y-1G: 8 LED, Yellow
TS-SR-35C-8B-1G: 8 LED, Blue
TS-SR-35C-8G-1G: 8 LED, Green
TS-SR-35C-16W-1G: 16 LED, White
TS-SR-35C-16R-1G: 16 LED, Red
TS-SR-35C-16Y-1G: 16 LED, Yellow
TS-SR-35C-16B-1G: 16 LED, Blue
TS-SR-35C-16G-1G: 16 LED, Green

• 3mt cable included.
• 1 cable gland.
• Cable standard (included): 0.75mm² wire section.
• Different cable layouts and length should be requested upon order.
• Standard mode: Always ON. For flashing or sequential mode, a microcontroller is required.


TS-SR-35C ordering codes
