Crosswalk Road Stud (TS-SR-CROSSLED-L)

Flush LED Road Stud

  • Ideal for use on crosswalks, walkways and pedestrian areas
  • Flush with road surface, doesn’t disturb pedestrian circulation
  • Large lighted area for visual impact
  • Robust construction with high strength
  • Easy maintenance
  • Download Data Sheet (PDF, 572KB)

Description

General Description

Introducing the TS-SR-CROSSLED-L, an innovative road stud designed to enhance pedestrian safety. Strategically placed at both ends of a crosswalk, the TS-SR-CROSSLED-L synchronizes with pedestrian crossing traffic lights, changing from red to green to provide a clear indication when pedestrians can safely enter the crosswalk.

Equipped with a generously illuminated surface, the TS-SR-CROSSLED-L guarantees outstanding visibility that eliminates the chance of pedestrians overlooking it. The low-profile design maintains a flush alignment with the road’s surface, eliminating any potential tripping hazards and ensuring pedestrians can navigate the crosswalk without impediment.

Key Features

  • Ideal for use on crosswalks, walkways and pedestrian areas
  • Flush with road surface, doesn’t disturb pedestrian circulation
  • Large lighted area for visual impact
  • Robust construction with high strength
  • Wired system that can be powered by electric or solar energy
  • Easy maintenance

Data Sheet

Videos

How to Specify

Specifications

Modes of Operation

  • Steady Light (amber color and other modes of operation like flashing, dimming or sequential activation are available with external controller)

LED Configuration

  • Linear with 110° viewing angle

Electrical Features

  • Power Supply: +12V DC
  • Power Consumption:
    • Red: 540mA, 6.50W
    • Green: 540mA, 6.50W
    • Amber: 756mA, 9.00W
  • Power Cable: 1: +12V DC, 2: 0V DC RED, 3: 0V DC GREEN
  • Working Temperature: -13°F to +185°F (-25°C to +85°C)

Optical Features

  • LED Quantity: 81
  • LED Type: RGB PLCC6 3535
  • LED Colors: Red, Green, Amber
  • LED Viewing Angle: 110°

Mechanical Features

  • Dimensions: 39.37″ x 3.94″ x 1.89″ (1000 x 100 x 48mm)
  • Material:
    • Top Part: Stainless steel league with polycarbonate
    • Bottom Part: Aluminum
  • Protection Index: IP67, IK10

Drawings

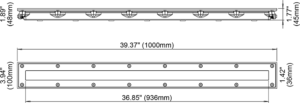

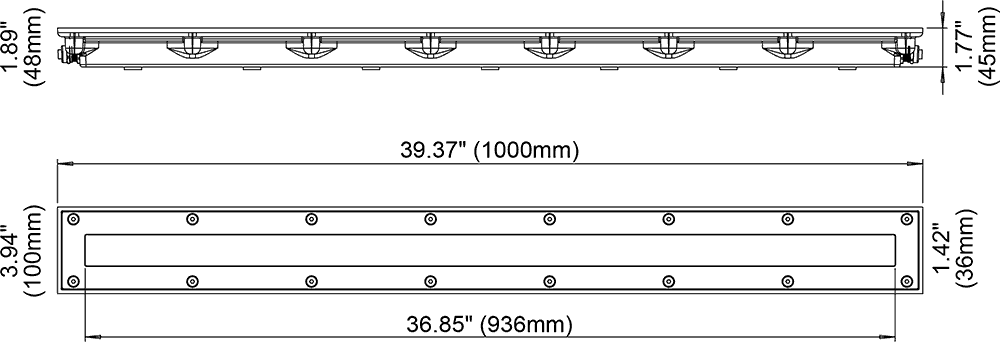

TS-SR-CROSSLED-L Crosswalk Road Stud dimensions

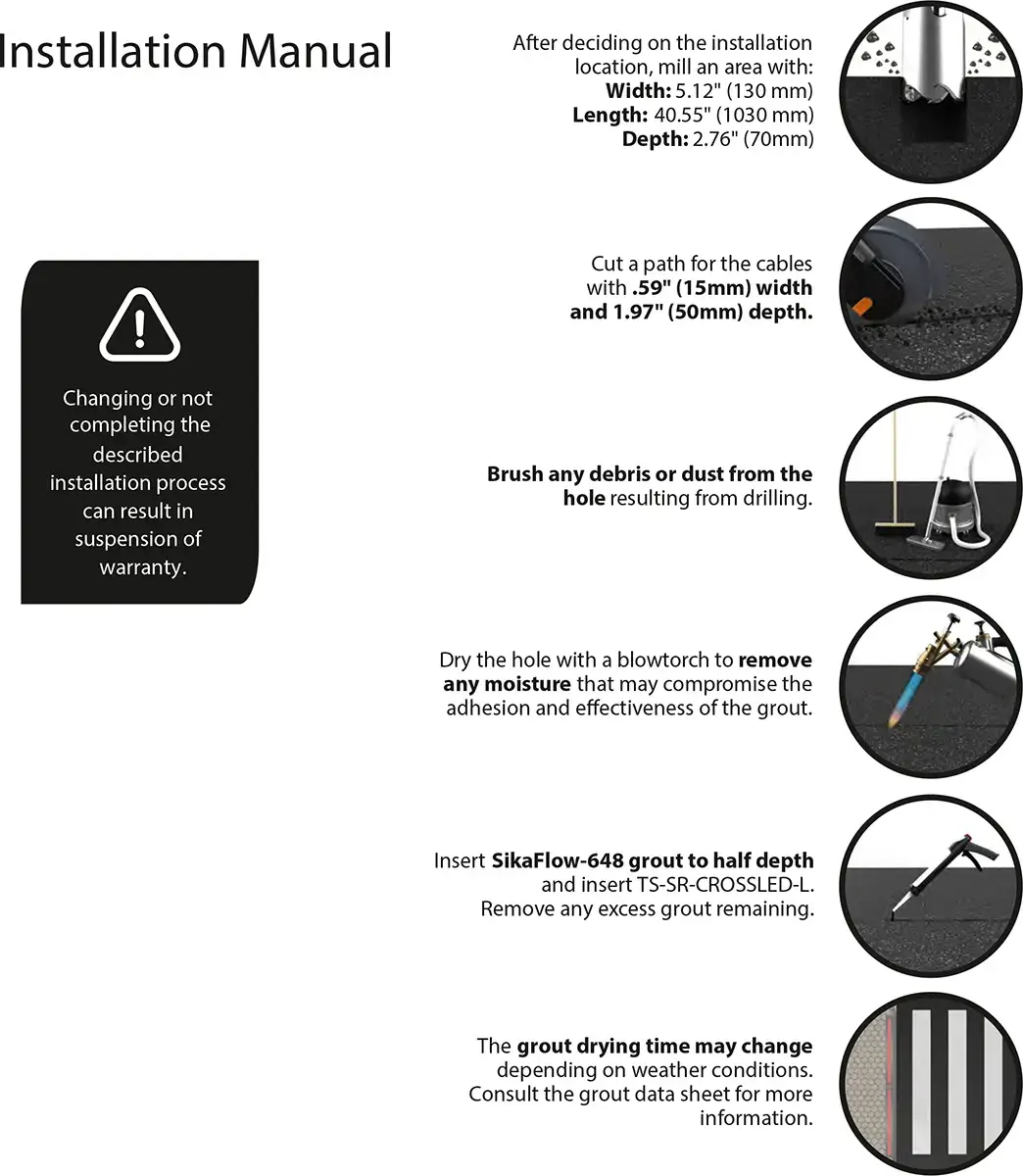

TS-SR-CROSSLED-L Crosswalk Road Stud installation
