Our TS-SR-45 stainless steel road stud features a durable, low maintenance design with outstanding visibility during the day and at night.
The TS-SR-45 is typically used in crosswalk applications, but it also can be used to mark school zones and rail-road crossings, lane control for bridges and tunnels, wrong way warning, and toll booth or toll way lead-on applications.
All In-Roadway Warning Lighting System components are available from TSC. A typical installation would include a set of road studs, a control system, one or more activation devices such as a pedestrian push button station, and flashing LED crossing signs.
Features
Robust construction, suitable for harsh conditions.
Snowplow resistant.
Outstanding visibility during the day and at night.
Suitable for applications in crosswalks, school zones, bridges and tunnels.
Only .34″ (8.7mm) above road surface.
Connect multiple road studs in series circuit.
Low maintenance, 100% waterproof.

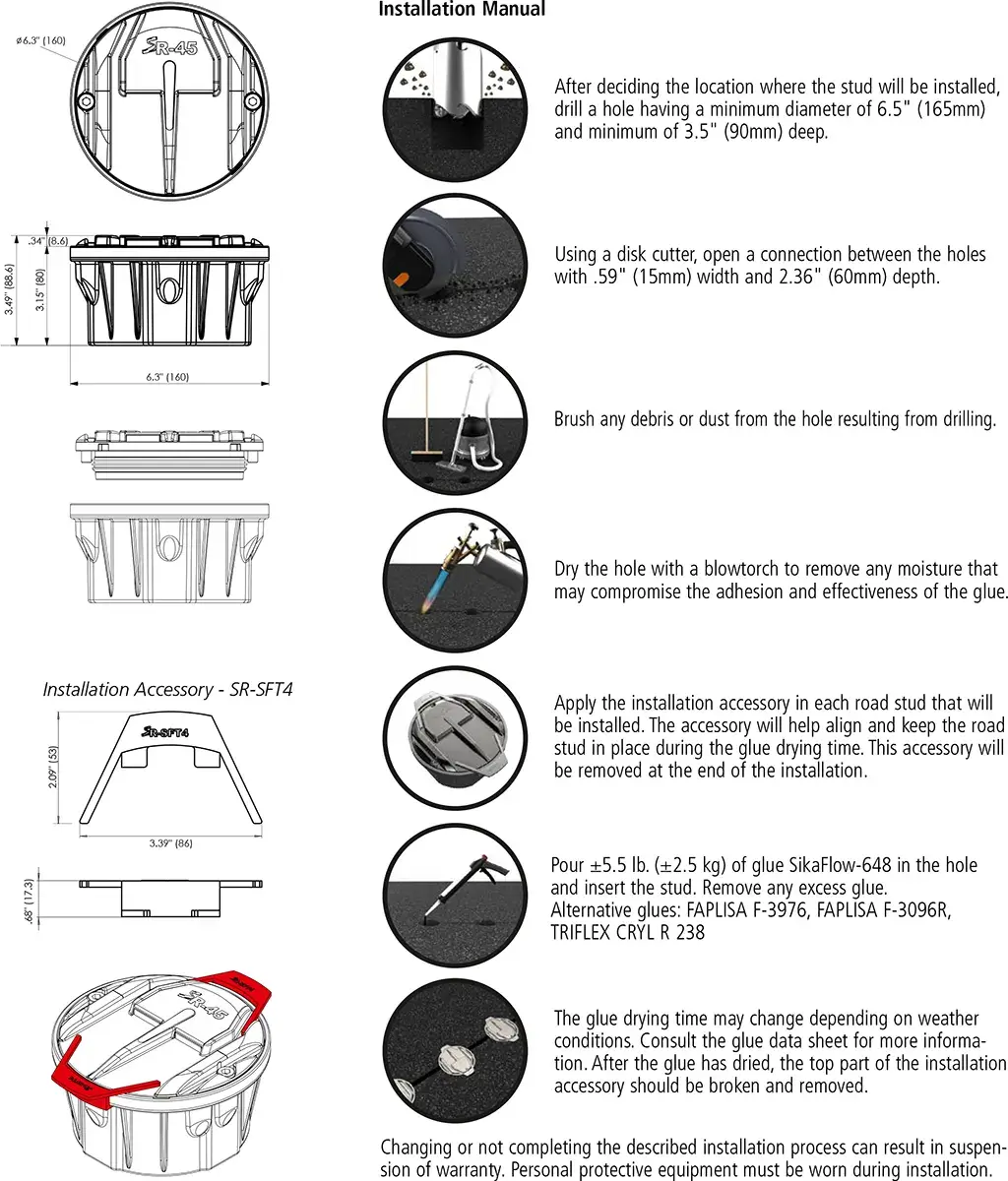

Easy replacement: base (fixed in the pavement), main body (removable).
LEDs protected by polycarbonate window.
Up to .62 mile (1 km) visibility distance due to high intensity LEDs.
Optional: use different LED colors in each window.
• 3mt cable included.
• 1 cable gland.

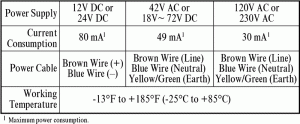

• Cable standard (included): 0.75mm² wire section.
• Different cable layouts and length should be requested upon order.
• Standard mode: Always ON. For flashing or sequential mode, a microcontroller is required.
Improve emergency crew response time by giving advanced warning to drivers that emerg Read More
Get the longest warranty in the industry
We offer a 5-Year Warranty – the longest in the industry – on inpavement crosswalk warning systems. For over 20 years, we’ve been building high quality, certified traffic products.
