Crosswalk Warning Inpavement Light (TS-SR-48)

Bi-Directional, Stainless Steel LED Road Stud

  • Snowplow resistant.
  • Outstanding visibility during the day and at night.
  • Low maintenance, 100% waterproof.

Review Crosswalk Warning Light System Components

Description

General Description

Our TS-SR-48 stainless steel road stud features a durable, low maintenance design with outstanding visibility during the day and at night.

The TS-SR-48 is typically used in crosswalk applications, but it also can be used to mark school zones and rail-road crossings, lane control for bridges and tunnels, wrong way warning, and toll booth or toll way lead-on applications.

All In-Roadway Warning Lighting System components are available from TSC. A typical installation would include a set of road studs, a control system, one or more activation devices such as a pedestrian push button station, and flashing LED crossing signs.

Features

  • Robust construction, suitable for harsh conditions.
  • Snowplow resistant.
  • Outstanding visibility during the day and at night.
  • Suitable for applications in crosswalks, school zones, bridges and tunnels.
  • Only .33″ (8.5mm) above road surface.
  • Connect multiple road studs in series circuit.
  • Low maintenance, 100% waterproof.
  • Easy replacement: base (fixed in the pavement), main body (removable).
  • LEDs protected by polycarbonate window.
  • Up to .62 mile (1 km) visibility distance due to high intensity LEDs.
  • Optional: use different LED colors in each window.

Data Sheet

How to Specify

Specifications

Modes of Operation:

  • Always On (other modes of operation like flashing or sequential are available with external controller)

LED Configuration:

  • Bidirectional

Electrical:

Optical:

  • LED Number: 16 LEDs
  • LED Type: 5mm
  • LED Colors: White, Red, Yellow, Green, Blue
  • Viewing Angle: 15°

Mechanical:

  • Main Body: Stainless Steel League
  • Base: Aluminium
  • Mechanical Resistance: 90 tons
  • Weight: 5.95 lb. (2.7 kg)
  • Protection Index: IP68, IK10
  • Dimensions: 6.32″ (160.5mm) diameter x 3.96″ (100.5mm) height

Other Versions
TS-SR-48P:

  • 4 high power LEDs (1W) for maximum brightness (day and night)
  • Specially developed heat sink to increase LED lifetime.
  • Viewing Angle: 16°
  • Power Supply: 24V DC (200 mA max)

Drawings

TS-SR-48 led configuration


TS-SR-48 cable layout


TS-SR-48 dimensions

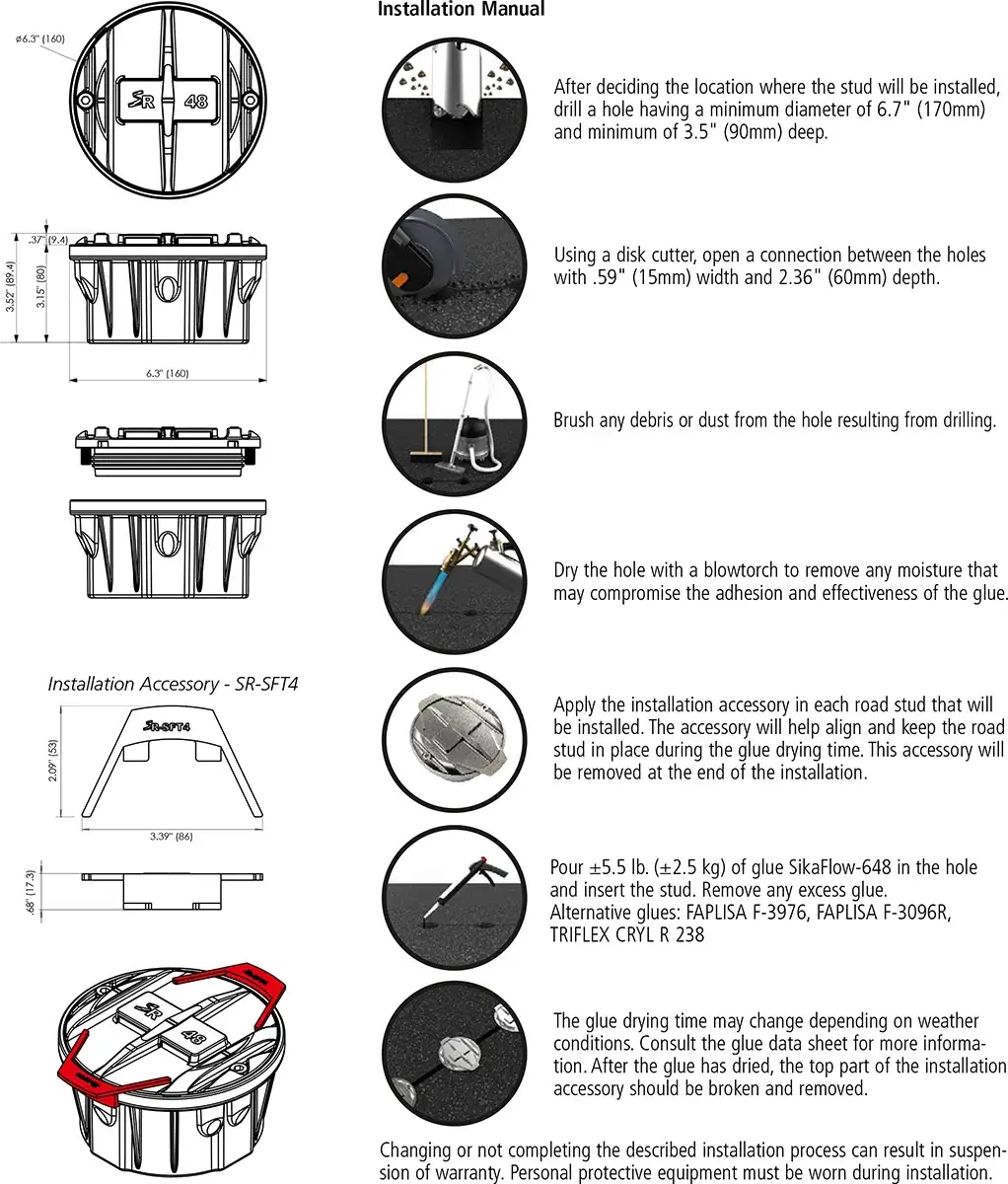

TS-SR-48 installation

Ordering Codes

Ordering Codes

Bidirectional, Stainless Steel, 16 LED
TS-SR-48-WW-1G: Bidirectional, Stainless Steel, 16 LED, White/White
TS-SR-48-RR-1G: Bidirectional, Stainless Steel, 16 LED, Red/Red
TS-SR-48-YY-1G: Bidirectional, Stainless Steel, 16 LED, Yellow/Yellow
TS-SR-48-BB-1G: Bidirectional, Stainless Steel, 16 LED, Blue/Blue
TS-SR-48-GG-1G: Bidirectional, Stainless Steel, 16 LED, Green/Green

Bidirectional, Stainless Steel, 4 LED
TS-SR-48P-WW-1G: Bidirectional, Stainless Steel, 4 LED, White/White
TS-SR-48P-RR-1G: Bidirectional, Stainless Steel, 4 LED, Red/Red
TS-SR-48P-YY-1G: Bidirectional, Stainless Steel, 4 LED, Yellow/Yellow
TS-SR-48P-BB-1G: Bidirectional, Stainless Steel, 4 LED, Blue/Blue
TS-SR-48P-GG-1G: Bidirectional, Stainless Steel, 4 LED, Green/Green

• 3mt cable included.
• 1 cable gland.
• Cable standard (included): 0.75mm² wire section.
• Different cable layouts and length should be requested upon order.
• Standard mode: Always ON. For flashing or sequential mode, a microcontroller is required.


TS-SR-48 ordering codes


TS-SR-48 ordering codes
