Crosswalk Warning Inpavement Light (TS-SR-50)

Rotatable, Stainless Steel LED Road Stud

  • Ability to rotate after installation.
  • Snowplow resistant.
  • Low maintenance, 100% waterproof.

Review Crosswalk Warning Light System Components


General Description

Our TS-SR-50 stainless steel road stud features a durable, low maintenance design with outstanding visibility during the day and at night.

The TS-SR-50 is typically used in crosswalk applications, but it also can be used to mark school zones and rail-road crossings, lane control for bridges and tunnels, wrong way warning, and toll booth or toll way lead-on applications.

All In-Roadway Warning Lighting System components are available from TSC. A typical installation would include a set of road studs, a control system, one or more activation devices such as a pedestrian push button station, and flashing LED crossing signs.


  • Robust construction, suitable for harsh conditions.
  • Snowplow resistant.
  • Ability to rotate after installation.
  • Only .16″ (4mm) above road surface.
  • Highbright LEDs (1W) with internal lens – used for maximum brightness.
  • Specially developed heat sink to increase LED lifetime.
  • Outstanding visibility during the day and at night.
  • Suitable for applications in crosswalks, school zones, bridges and tunnels.
  • Low maintenance, 100% waterproof.
  • Easy replacement: base (fixed in the pavement), main body (removable).
  • Polycarbonate window protects LEDs.
  • Optional: use different LED colors on each side.

Data Sheet

How to Specify


Modes of Operation:

  • Always On (other modes of operation like flashing or sequential are available with external controller)

LED Configuration:

  • Unidirectional or bidirectional


  • Power Supply: 24V DC
  • Current Consumption: 200 mA

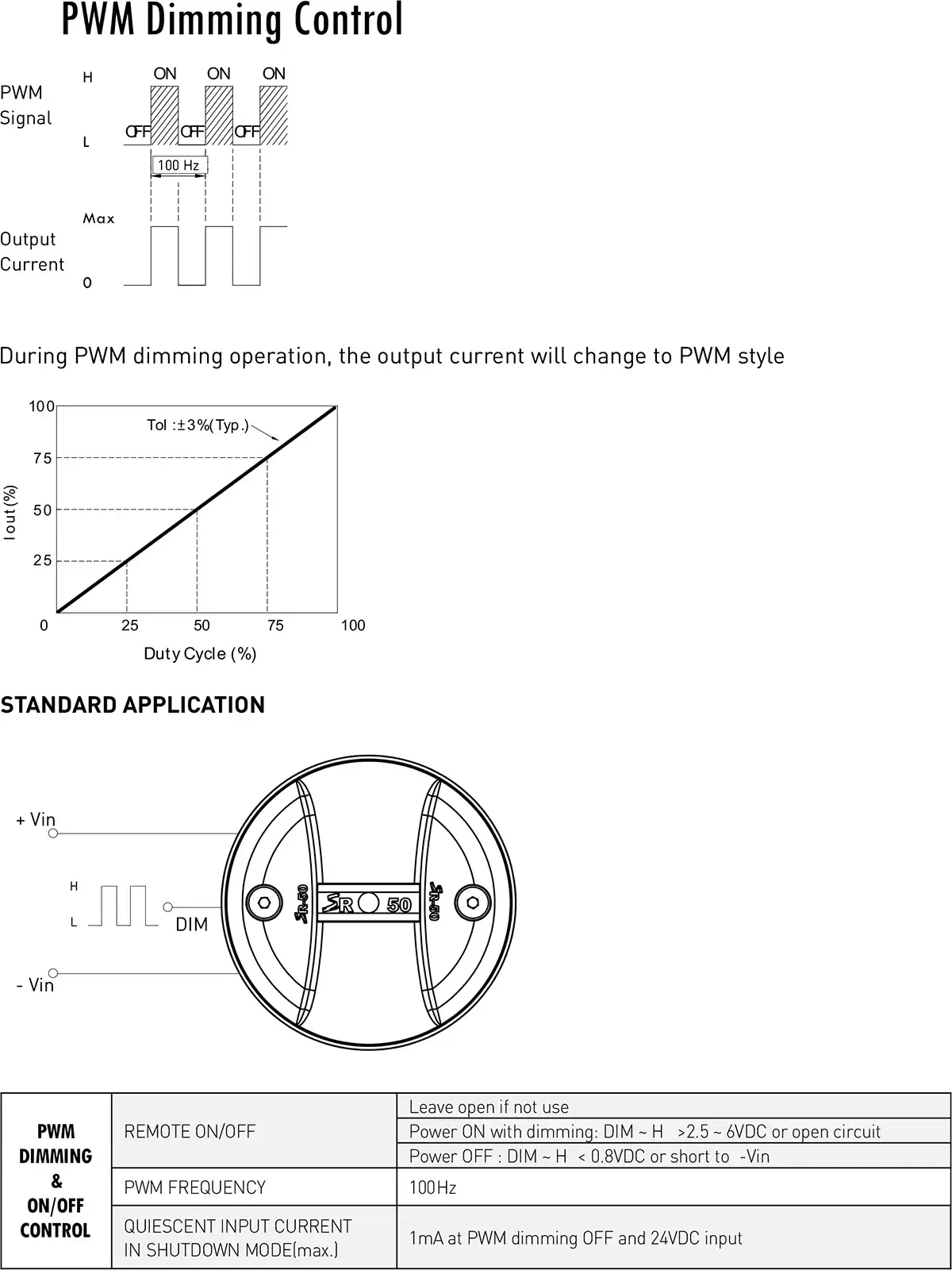

  • Power Cable: Wire 1 (+), Wire 2 (–), Wire 3 (PWM)
  • Working Temperature: -13°F to +185°F (-25°C to +85°C)


  • LED Number: 2 or 4 LEDs (Unidirectional), 2 + 2 LEDs (Bidirectional)
  • LED Type: High power (1W)
  • LED Colors: White, Red, Yellow, Green, Blue
  • Viewing Angle: 16°


  • Main Body: Stainless Steel League
  • Base: Aluminium
  • Mechanical Resistance: 160 tons
  • Weight: 4.85 lb. (2.2 kg)
  • Protection Index: IP68, IK10
  • Dimensions: 5.67″ (144mm) diameter x 3.74″ (95mm) height


TS-SR-50 led configuration

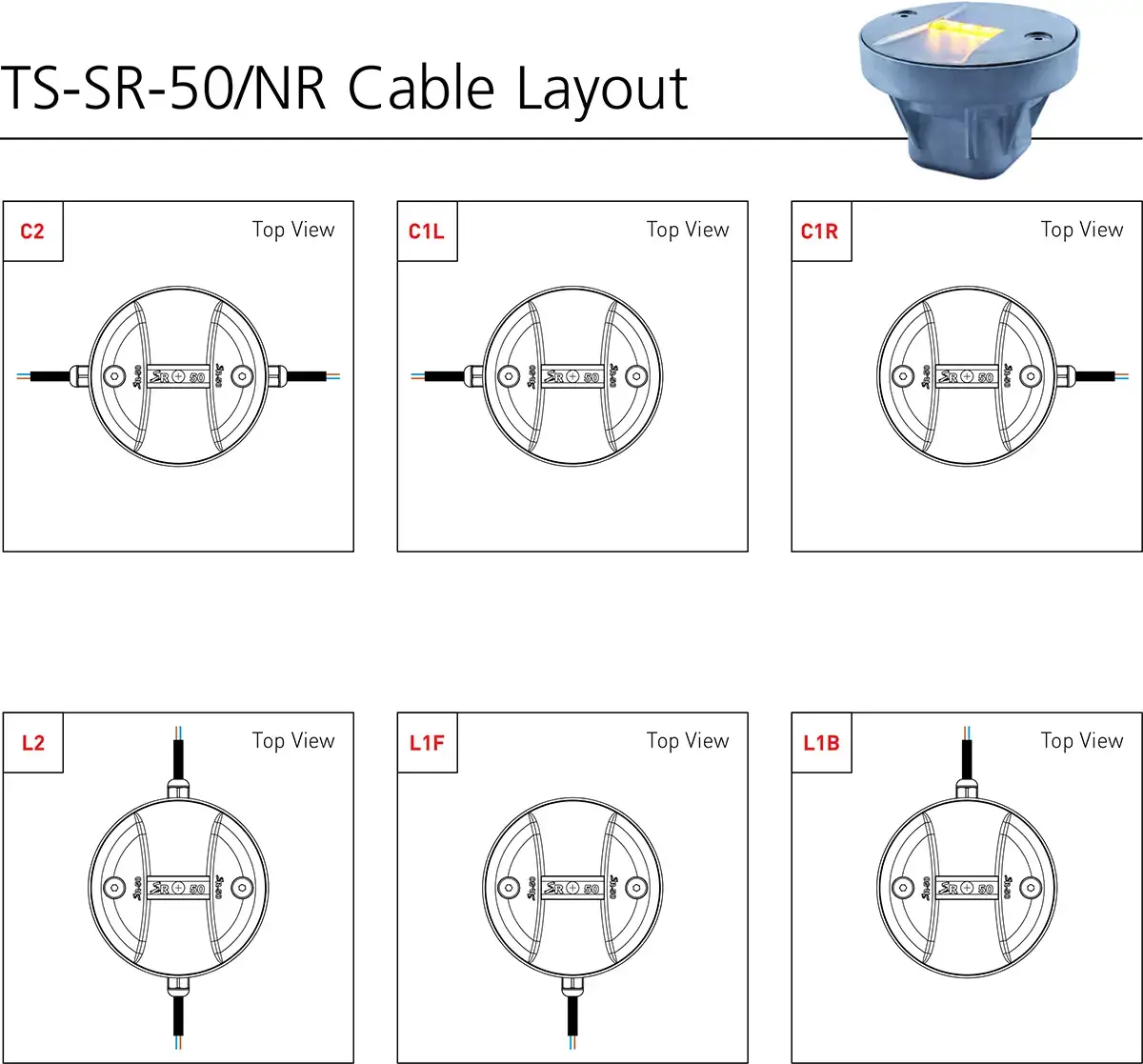

TS-SR-50 cable layout

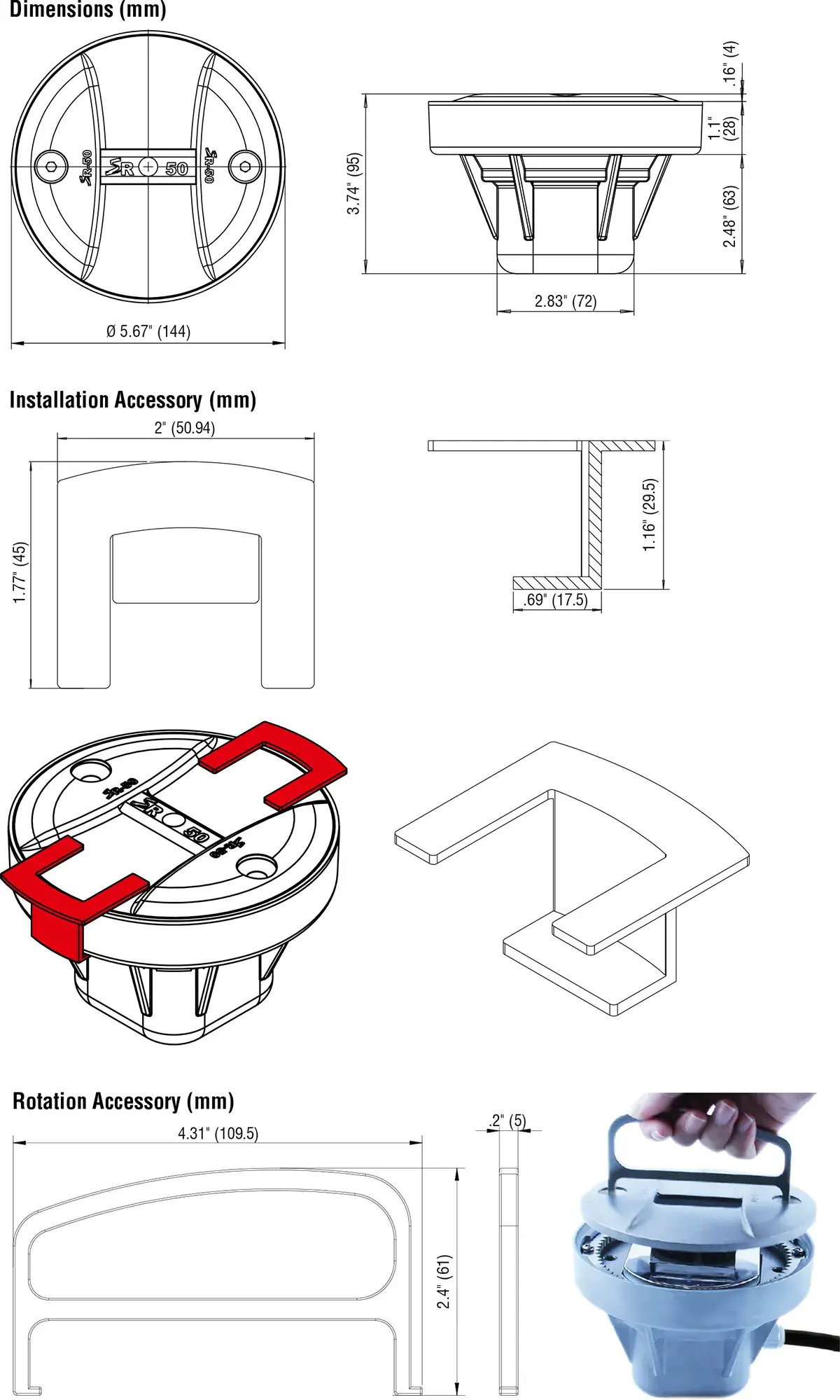

TS-SR-50 dimensions

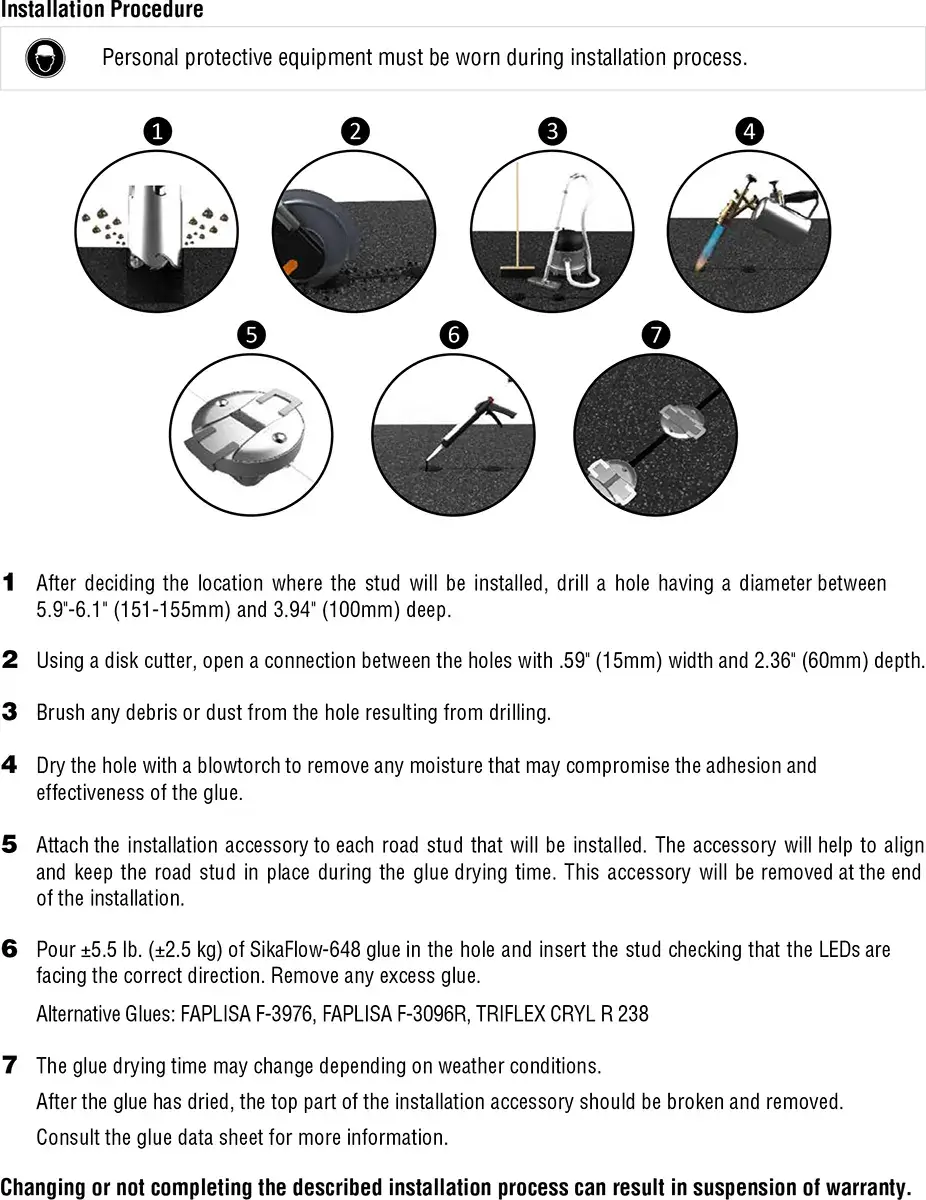

TS-SR-50 installation

Ordering Codes

TS-SR-50 ordering codes
