Road Guidance Light (TS-SR-i15)

Intelligent Solar LED Road Stud

Get a Quote

Description

Features

  • Use of microcontroller technology.
  • Appropriate for regular traffic zones and areas of poor visibility.
  • Ideal for road delineation, bends/curves, crosswalks among others applications.
  • Only .5″ (12.7mm) above road surface.
  • Low maintenance, 100% waterproof.
  • SLEEP mode to prevent discharge during storage / transport.
  • Constant brightness during all functioning period.
  • Protection against deep discharge of the batteries / capacitors.
  • High performance photovoltaic solar module.
  • Energy storage in super capacitors or batteries.
  • Internal prismatic system.
  • No oxidation problems.
  • Up to .62 mile (1 km) visibility distance due to high intensity LEDs.
  • Many LED color options available for a wide variety of applications.
Get a Quote

Data Sheet

How to Specify

Specifications

Modes of Operation:

  • Always On or Flashing

LED Configuration:

  • Unidirectional or bidirectional

Electrical:

Optical:

  • LED Quantity: 1 or 2 LEDs (Unidirectional), 2 or 4 LEDs (Bidirectional)
  • LED Type: 5mm
  • LED Colors: White, Red, Yellow, Green, Blue
  • Viewing Angle: 15°

Mechanical:

  • Material: Polycarbonate
  • Mechanical Resistance: 60 tons
  • Weight: 1.1 lb. (.5 kg)
  • Protection Index: IP68, IK10
  • Dimensions: 5.69″ (144.6mm) diameter x 1.97″ (50mm) height

Other Versions
TS-SR-i15-ICE Intelligent Ice Detector Solar Road Stud:

  • Detection of probability of ice formation in critical places.
  • Only operates when ice is present.
  • Trigger detection given by internal temperature sensor.
  • Adjustable trigger detection point before production.

Drawings

TS-SR-i15 drawings

TS-SR-i15 installation instructions

Ordering Codes

Ordering Codes

Unidirectional, 1 LED, Flashing (With Capacitor)
TS-SR-i15-U1W-F-C: Unidirectional, 1 LED, Flashing (With Capacitor), White
TS-SR-i15-U1R-F-C: Unidirectional, 1 LED, Flashing (With Capacitor), Red
TS-SR-i15-U1Y-F-C: Unidirectional, 1 LED, Flashing (With Capacitor), Yellow
TS-SR-i15-U1B-F-C: Unidirectional, 1 LED, Flashing (With Capacitor), Blue
TS-SR-i15-U1G-F-C: Unidirectional, 1 LED, Flashing (With Capacitor), Green

Unidirectional, 1 LED, Always ON (With Capacitor)
TS-SR-i15-U1W-A-C: Unidirectional, 1 LED, Always ON (With Capacitor), White
TS-SR-i15-U1R-A-C: Unidirectional, 1 LED, Always ON (With Capacitor), Red
TS-SR-i15-U1Y-A-C: Unidirectional, 1 LED, Always ON (With Capacitor), Yellow
TS-SR-i15-U1B-A-C: Unidirectional, 1 LED, Always ON (With Capacitor), Blue
TS-SR-i15-U1G-A-C: Unidirectional, 1 LED, Always ON (With Capacitor), Green

Unidirectional, 1 LED, Flashing (With Battery)
TS-SR-i15-U1W-F-B: Unidirectional, 1 LED, Flashing (With Battery), White
TS-SR-i15-U1R-F-B: Unidirectional, 1 LED, Flashing (With Battery), Red
TS-SR-i15-U1Y-F-B: Unidirectional, 1 LED, Flashing (With Battery), Yellow
TS-SR-i15-U1B-F-B: Unidirectional, 1 LED, Flashing (With Battery), Blue
TS-SR-i15-U1G-F-B: Unidirectional, 1 LED, Flashing (With Battery), Green

Unidirectional, 1 LED, Always ON (With Battery)
TS-SR-i15-U1W-A-B: Unidirectional, 1 LED, Always ON (With Battery), White
TS-SR-i15-U1R-A-B: Unidirectional, 1 LED, Always ON (With Battery), Red
TS-SR-i15-U1Y-A-B: Unidirectional, 1 LED, Always ON (With Battery), Yellow
TS-SR-i15-U1B-A-B: Unidirectional, 1 LED, Always ON (With Battery), Blue
TS-SR-i15-U1G-A-B: Unidirectional, 1 LED, Always ON (With Battery), Green

Unidirectional, 2 LED, Flashing (With Capacitor)
TS-SR-i15-U2W-F-C: Unidirectional, 2 LED, Flashing (With Capacitor), White
TS-SR-i15-U2R-F-C: Unidirectional, 2 LED, Flashing (With Capacitor), Red
TS-SR-i15-U2Y-F-C: Unidirectional, 2 LED, Flashing (With Capacitor), Yellow
TS-SR-i15-U2B-F-C: Unidirectional, 2 LED, Flashing (With Capacitor), Blue
TS-SR-i15-U2G-F-C: Unidirectional, 2 LED, Flashing (With Capacitor), Green

Unidirectional, 2 LED, Always ON (With Capacitor)
TS-SR-i15-U2W-A-C: Unidirectional, 2 LED, Always ON (With Capacitor), White
TS-SR-i15-U2R-A-C: Unidirectional, 2 LED, Always ON (With Capacitor), Red
TS-SR-i15-U2Y-A-C: Unidirectional, 2 LED, Always ON (With Capacitor), Yellow
TS-SR-i15-U2B-A-C: Unidirectional, 2 LED, Always ON (With Capacitor), Blue
TS-SR-i15-U2G-A-C: Unidirectional, 2 LED, Always ON (With Capacitor), Green

Unidirectional, 2 LED, Flashing (With Battery)
TS-SR-i15-U2W-F-B: Unidirectional, 2 LED, Flashing (With Battery), White
TS-SR-i15-U2R-F-B: Unidirectional, 2 LED, Flashing (With Battery), Red
TS-SR-i15-U2Y-F-B: Unidirectional, 2 LED, Flashing (With Battery), Yellow
TS-SR-i15-U2B-F-B: Unidirectional, 2 LED, Flashing (With Battery), Blue
TS-SR-i15-U2G-F-B: Unidirectional, 2 LED, Flashing (With Battery), Green

Unidirectional, 2 LED, Always ON (With Battery)
TS-SR-i15-U2W-A-B: Unidirectional, 2 LED, Always ON (With Battery), White
TS-SR-i15-U2R-A-B: Unidirectional, 2 LED, Always ON (With Battery), Red
TS-SR-i15-U2Y-A-B: Unidirectional, 2 LED, Always ON (With Battery), Yellow
TS-SR-i15-U2B-A-B: Unidirectional, 2 LED, Always ON (With Battery), Blue
TS-SR-i15-U2G-A-B: Unidirectional, 2 LED, Always ON (With Battery), Green

Bidirectional, 2 LED, Flashing (With Capacitor)
TS-SR-i15-B2WW-F-C: Bidirectional, 2 LED, Flashing (With Capacitor), White/White
TS-SR-i15-B2RR-F-C: Bidirectional, 2 LED, Flashing (With Capacitor), Red/Red
TS-SR-i15-B2YY-F-C: Bidirectional, 2 LED, Flashing (With Capacitor), Yellow/Yellow
TS-SR-i15-B2BB-F-C: Bidirectional, 2 LED, Flashing (With Capacitor), Blue/Blue
TS-SR-i15-B2GG-F-C: Bidirectional, 2 LED, Flashing (With Capacitor), Green/Green

Bidirectional, 2 LED, Always ON (With Capacitor)
TS-SR-i15-B2WW-A-C: Bidirectional, 2 LED, Always ON (With Capacitor), White/White
TS-SR-i15-B2RR-A-C: Bidirectional, 2 LED, Always ON (With Capacitor), Red/Red
TS-SR-i15-B2YY-A-C: Bidirectional, 2 LED, Always ON (With Capacitor), Yellow/Yellow
TS-SR-i15-B2BB-A-C: Bidirectional, 2 LED, Always ON (With Capacitor), Blue/Blue
TS-SR-i15-B2GG-A-C: Bidirectional, 2 LED, Always ON (With Capacitor), Green/Green

Bidirectional, 2 LED, Flashing (With Battery)
TS-SR-i15-B2WW-F-B: Bidirectional, 2 LED, Flashing (With Battery), White/White
TS-SR-i15-B2RR-F-B: Bidirectional, 2 LED, Flashing (With Battery), Red/Red
TS-SR-i15-B2YY-F-B: Bidirectional, 2 LED, Flashing (With Battery), Yellow/Yellow
TS-SR-i15-B2BB-F-B: Bidirectional, 2 LED, Flashing (With Battery), Blue/Blue
TS-SR-i15-B2GG-F-B: Bidirectional, 2 LED, Flashing (With Battery), Green/Green

Bidirectional, 2 LED, Always ON (With Battery)
TS-SR-i15-B2WW-A-B: Bidirectional, 2 LED, Always ON (With Battery), White/White
TS-SR-i15-B2RR-A-B: Bidirectional, 2 LED, Always ON (With Battery), Red/Red
TS-SR-i15-B2YY-A-B: Bidirectional, 2 LED, Always ON (With Battery), Yellow/Yellow
TS-SR-i15-B2BB-A-B: Bidirectional, 2 LED, Always ON (With Battery), Blue/Blue
TS-SR-i15-B2GG-A-B: Bidirectional, 2 LED, Always ON (With Battery), Green/Green

Bidirectional, 4 LED, Flashing (With Capacitor)
TS-SR-i15-B4WW-F-C: Bidirectional, 4 LED, Flashing (With Capacitor), White/White
TS-SR-i15-B4RR-F-C: Bidirectional, 4 LED, Flashing (With Capacitor), Red/Red
TS-SR-i15-B4YY-F-C: Bidirectional, 4 LED, Flashing (With Capacitor), Yellow/Yellow
TS-SR-i15-B4BB-F-C: Bidirectional, 4 LED, Flashing (With Capacitor), Blue/Blue
TS-SR-i15-B4GG-F-C: Bidirectional, 4 LED, Flashing (With Capacitor), Green/Green

Bidirectional, 4 LED, Always ON (With Capacitor)
TS-SR-i15-B4WW-A-C: Bidirectional, 4 LED, Always ON (With Capacitor), White/White
TS-SR-i15-B4RR-A-C: Bidirectional, 4 LED, Always ON (With Capacitor), Red/Red
TS-SR-i15-B4YY-A-C: Bidirectional, 4 LED, Always ON (With Capacitor), Yellow/Yellow
TS-SR-i15-B4BB-A-C: Bidirectional, 4 LED, Always ON (With Capacitor), Blue/Blue
TS-SR-i15-B4GG-A-C: Bidirectional, 4 LED, Always ON (With Capacitor), Green/Green

Bidirectional, 4 LED, Flashing (With Battery)
TS-SR-i15-B4WW-F-B: Bidirectional, 4 LED, Flashing (With Battery), White/White
TS-SR-i15-B4RR-F-B: Bidirectional, 4 LED, Flashing (With Battery), Red/Red
TS-SR-i15-B4YY-F-B: Bidirectional, 4 LED, Flashing (With Battery), Yellow/Yellow
TS-SR-i15-B4BB-F-B: Bidirectional, 4 LED, Flashing (With Battery), Blue/Blue
TS-SR-i15-B4GG-F-B: Bidirectional, 4 LED, Flashing (With Battery), Green/Green

Bidirectional, 4 LED, Always ON (With Battery)
TS-SR-i15-B4WW-A-B: Bidirectional, 4 LED, Always ON (With Battery), White/White
TS-SR-i15-B4RR-A-B: Bidirectional, 4 LED, Always ON (With Battery), Red/Red
TS-SR-i15-B4YY-A-B: Bidirectional, 4 LED, Always ON (With Battery), Yellow/Yellow
TS-SR-i15-B4BB-A-B: Bidirectional, 4 LED, Always ON (With Battery), Blue/Blue
TS-SR-i15-B4GG-A-B: Bidirectional, 4 LED, Always ON (With Battery), Green/Green

• Ice detector mode: TS-SR-i15-XXXX-X-X/ICE: Ice detector only
• Evolution microcontroller technology: TS-SR-i15E-XXXX-X-X

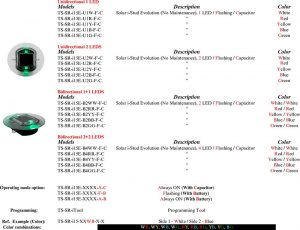

TS-SR-i15 ordering codes

TS-SR-i15 ordering codes
