Crosswalk Warning Inpavement Light (TS-SR-50S-NR)

Stainless Steel LED Road Stud

Review Crosswalk Warning Light System Components

Description

General Description

Our TS-SR-50S-NR stainless steel road stud features a durable, low maintenance design with outstanding visibility during the day and at night.

The TS-SR-50S-NR is typically used in crosswalk applications, but it also can be used to mark school zones and rail-road crossings, lane control for bridges, tunnels and parking structures, wrong way warning, and toll booth or toll way lead-on applications.

All In-Roadway Warning Lighting System components are available from TSC. A typical installation would include a set of road studs, a control system, one or more activation devices such as a pedestrian push button station, and flashing LED crossing signs.

Features

  • Robust construction, suitable for harsh conditions
  • Snowplow resistant
  • Low maintenance, 100% waterproof
  • High mechanical resistance: up to 160 tons, suitable for regular traffic areas of heavy vehicles
  • Outstanding visibility during the day and at night
  • Up to .62 mile (1 km) visibility distance due to high intensity LEDs
  • Many LED color options for all types of applications
  • Suitable for applications in crosswalks, school zones, bridges, tunnels, parking structures
  • Only .16″ (4mm) above road surface
  • Easy replacement: base (fixed in the pavement), main body (removable)
  • Polycarbonate window protects LEDs
  • Optional: use different LED colors on each side

Data Sheet

How to Specify

Specifications

Versions

  • TS-SR-50S-NR: Non-Rotatable Version
  • TS-SR-50S: Rotatable Version

Modes of Operation

  • Steady (other modes of operation like flashing or sequential are available with external controller)

LED Configuration

  • Uni-directional or bi-directional

Electrical Features

  • Power Supply: 12V DC or 24V DC
  • Maximum Current Consumption: Uni-directional: 60 mA, Bi-directional: 120 mA
  • Power Cable: Brown (+) | Blue (–)
  • Operation Temperature: -13°F to +185°F (-25°C to +85°C)

Optical Features

  • LED Quantity: 6 LEDs (Uni-directional), 12 LEDs (Bi-directional)
  • LED Type: 5mm
  • LED Colors: White, Warm White, Red, Amber, Green, Blue
  • LED Viewing Angle: 15°

Mechanical Features

  • Top Material: Hard stainless steel league with good corrosion resistance and polycarbonate window
  • Bottom Material: Aluminum
  • Mechanical Resistance: up to 160 tons
  • Weight: 4.85 lb. (2.2 kg)
  • Rising from Surface: .16″ (4mm)
  • Dimensions: Ø5.67″ (144mm) x 3.74″ (95mm)

Drawings

TS-SR-50S-NR LED Road Stud dimensions

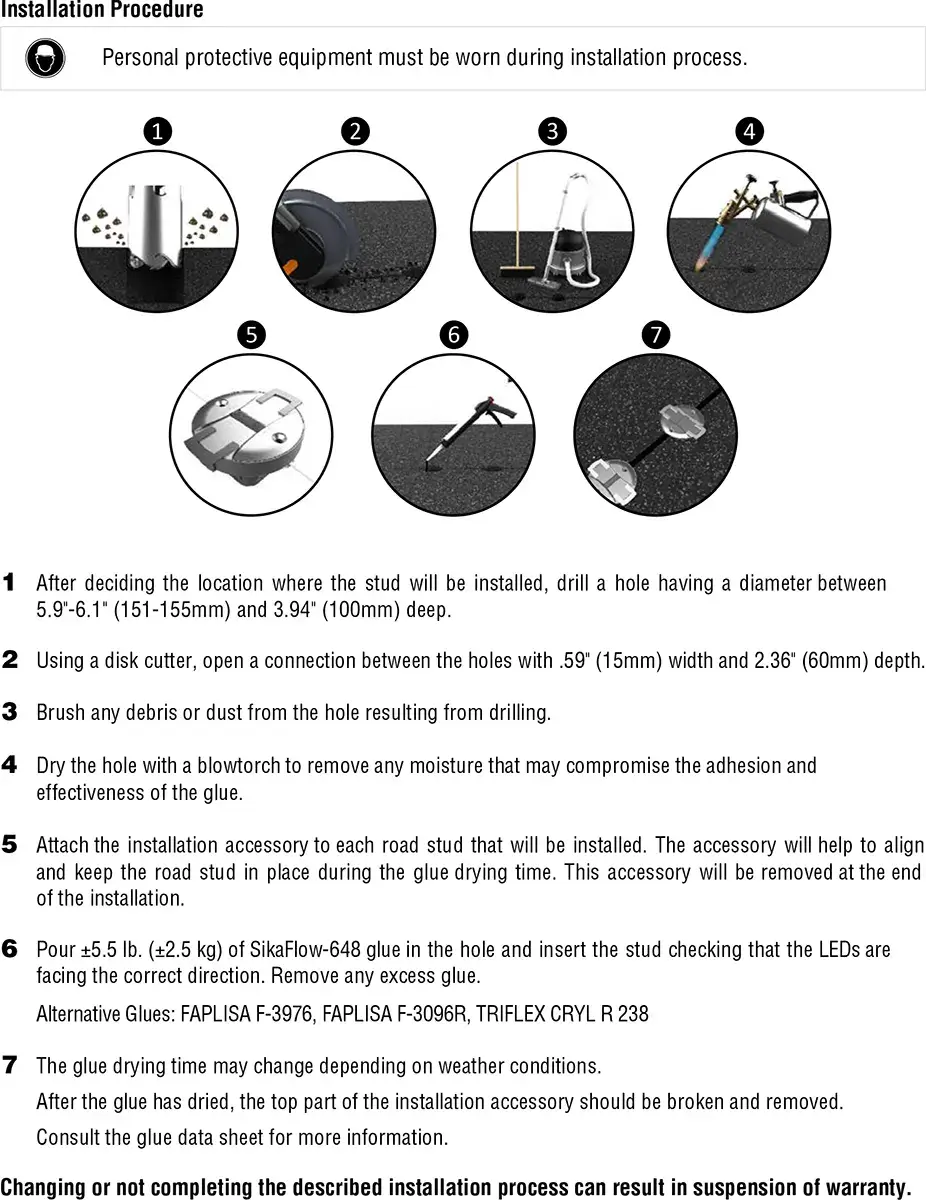

TS-SR-50S-NR LED Road Stud instructions
