Road Guidance Light (TS-SR-20C)

Hardwired LED Road Stud

  • Only .59″ (15mm) above road surface.
  • Low maintenance, 100% waterproof.
  • Wired system that can be powered by electric or solar energy.
  • Download Data Sheet (PDF, 702KB)
Get a Quote

Description

Features

  • Appropriate for regular traffic zones and areas of poor visibility.
  • Ideal for road delineation, bends/curves, crosswalks among others applications.
  • Only .59″ (15mm) above road surface.
  • High brightness during day and night.
  • Low maintenance, 100% waterproof.
  • Connect multiple road studs in series circuit.
  • Wired system that can be powered by electric or solar energy.
  • Low power consumption.
  • Internal prismatic system.
  • Up to .62 mile (1 km) visibility distance due to high intensity LEDs.
  • Many LED color options available for a wide variety of applications.
  • Optional hard anodizing or powder coating available for top of road stud.
Get a Quote

Data Sheet

How to Specify

Specifications

Modes of Operation:

  • Always On (other modes of operation like flashing or sequential are available with external controller)

LED Configuration:

  • Unidirectional or bidirectional

Electrical:

  • Power Supply: 12V DC or 24V DC
  • Maximum Current Consumption: 40 mA (depends on LED configuration)
  • Power Cable: Brown Wire (+), Blue Wire (–)
  • Working Temperature: -13°F to +185°F (-25°C to +85°C)

Optical:

  • LED Quantity: 1 or 2 LEDs (Unidirectional), 2 or 4 LEDs (Bidirectional)
  • LED Type: 5mm
  • LED Colors: White, Red, Yellow, Green, Blue
  • Viewing Angle: 15°

Mechanical:

  • Material: Aluminum and Polycarbonate
  • Mechanical Resistance: 20 tons
  • Weight: 2.2 lb. (1 kg)
  • Protection Index: IP68, IK10
  • Dimensions: 5.67″ (144mm) diameter x 3.43″ (87mm) height

Other Versions
TS-SR-20CP: Hardwired Road Stud with Power LEDs:

  • High visibility due to power LEDs (even in adverse weather conditions).
  • Allows drivers a higher reaction time due to extended lighting range.
  • Power supply: 12V DC.
  • Maximum Current Consumption: 210 mA (depends on LED configuration).
  • LED Quantity: 1 (Unidirectional), 2 (Bidirectional).
  • Viewing angle: 16°

Drawings

TS-SR-20C led configuration

TS-SR-20C cable layout

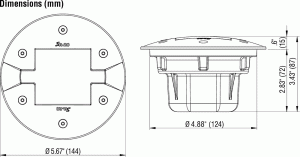

TS-SR-20C dimensions

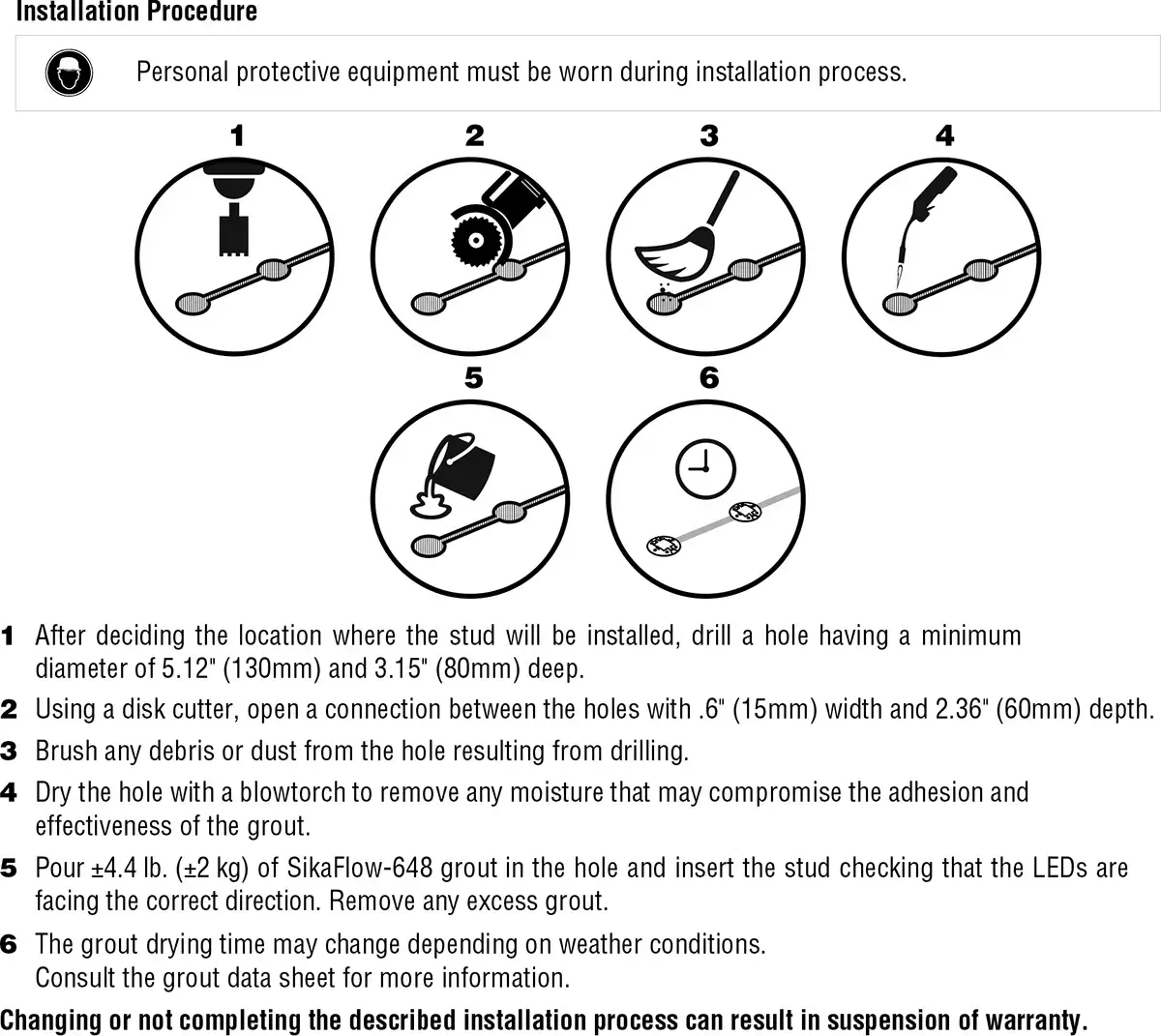

TS-SR-20C installation

Ordering Codes

Ordering Codes

Unidirectional, Aluminum, 1 LED
TS-SR-20C-U1W-S-1G: Unidirectional, Aluminum, 1 LED, White
TS-SR-20C-U1R-S-1G: Unidirectional, Aluminum, 1 LED, Red
TS-SR-20C-U1Y-S-1G: Unidirectional, Aluminum, 1 LED, Yellow
TS-SR-20C-U1B-S-1G: Unidirectional, Aluminum, 1 LED, Blue
TS-SR-20C-U1G-S-1G: Unidirectional, Aluminum, 1 LED, Green

Unidirectional, Aluminum, 2 LED
TS-SR-20C-U2W-S-1G: Unidirectional, Aluminum, 2 LED, White
TS-SR-20C-U2R-S-1G: Unidirectional, Aluminum, 2 LED, Red
TS-SR-20C-U2Y-S-1G: Unidirectional, Aluminum, 2 LED, Yellow
TS-SR-20C-U2B-S-1G: Unidirectional, Aluminum, 2 LED, Blue
TS-SR-20C-U2G-S-1G: Unidirectional, Aluminum, 2 LED, Green

Bidirectional, Aluminum, 2 LED
TS-SR-20C-B2WW-S-1G: Bidirectional, Aluminum, 2 LED, White/White
TS-SR-20C-B2RR-S-1G: Bidirectional, Aluminum, 2 LED, Red/Red
TS-SR-20C-B2YY-S-1G: Bidirectional, Aluminum, 2 LED, Yellow/Yellow
TS-SR-20C-B2BB-S-1G: Bidirectional, Aluminum, 2 LED, Blue/Blue
TS-SR-20C-B2GG-S-1G: Bidirectional, Aluminum, 2 LED, Green/Green

Bidirectional, Aluminum, 4 LED
TS-SR-20C-B4WW-S-1G: Bidirectional, Aluminum, 4 LED, White/White
TS-SR-20C-B4RR-S-1G: Bidirectional, Aluminum, 4 LED, Red/Red
TS-SR-20C-B4YY-S-1G: Bidirectional, Aluminum, 4 LED, Yellow/Yellow
TS-SR-20C-B4BB-S-1G: Bidirectional, Aluminum, 4 LED, Blue/Blue
TS-SR-20C-B4GG-S-1G: Bidirectional, Aluminum, 4 LED, Green/Green

Unidirectional, Aluminum, 1 LED
TS-SR-20CP-U1W-S-1G: Unidirectional, Aluminum, 1 LED, White
TS-SR-20CP-U1R-S-1G: Unidirectional, Aluminum, 1 LED, Red
TS-SR-20CP-U1Y-S-1G: Unidirectional, Aluminum, 1 LED, Yellow
TS-SR-20CP-U1B-S-1G: Unidirectional, Aluminum, 1 LED, Blue
TS-SR-20CP-U1G-S-1G: Unidirectional, Aluminum, 1 LED, Green

Bidirectional, Aluminum, 2 LED
TS-SR-20CP-B2WW-S-1G: Bidirectional, Aluminum, 2 LED, White/White
TS-SR-20CP-B2RR-S-1G: Bidirectional, Aluminum, 2 LED, Red/Red
TS-SR-20CP-B2YY-S-1G: Bidirectional, Aluminum, 2 LED, Yellow/Yellow
TS-SR-20CP-B2BB-S-1G: Bidirectional, Aluminum, 2 LED, Blue/Blue
TS-SR-20CP-B2GG-S-1G: Bidirectional, Aluminum, 2 LED, Green/Green

• 3mt cable included.
• Standard CAP.
• 1 cable gland.
• Cable standard (included): 0.75mm² wire section.
• Different cable layouts and length should be requested upon order.
• Standard mode: Always ON. For flashing or sequential mode, a microcontroller is required.

TS-SR-20C ordering codes

TS-SR-20C ordering codes
