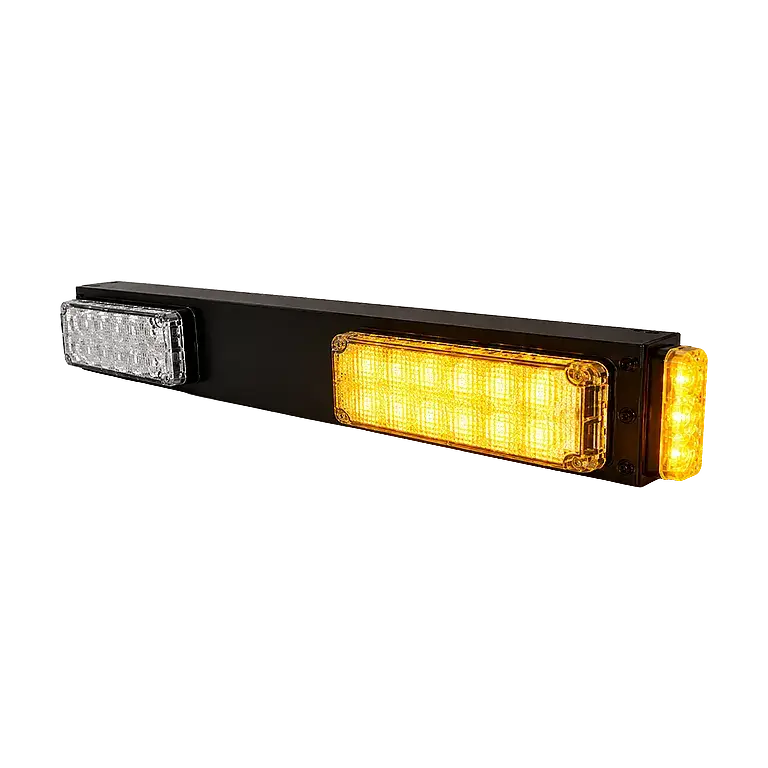

TS60-RRFB LED Rectangular Rapid Flashing Beacons

Made in USA

Get a Quote

Description

General Description

Our Rectangular Rapid Flashing Beacons (RRFBs) are used to supplement warning signs at uncontrolled intersections or mid-block crosswalks. Our RRFBs feature flashing, high-intensity LEDs that alert motorists that pedestrians are using the crosswalk. Studies have shown that RRFBs significantly increase driver yielding behavior.

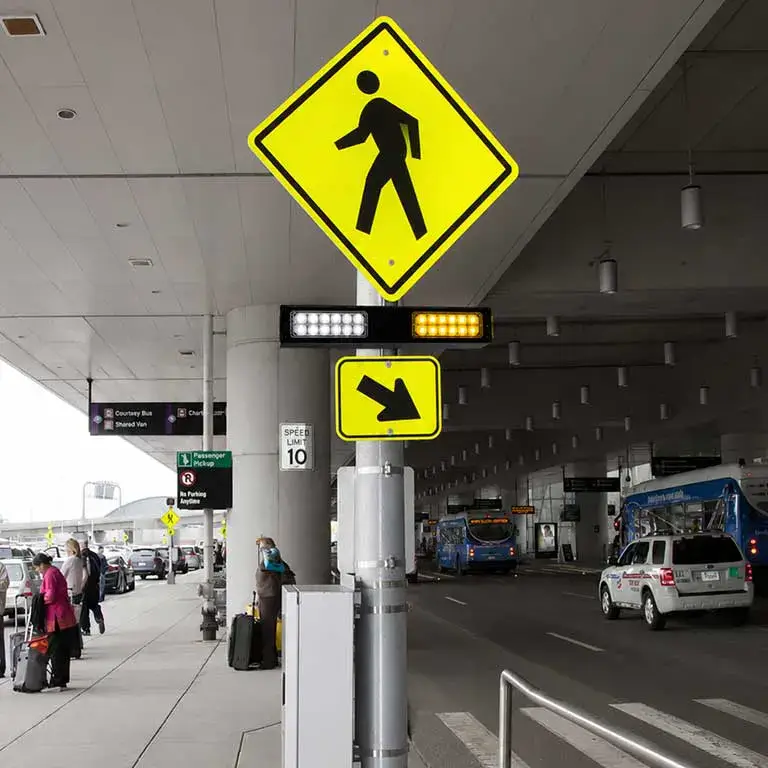

RRFBs are placed on both sides of a crosswalk below a pedestrian crossing sign and above an arrow sign that points at the crossing. Pedestrians can manually activate RRFBs with a push-button or passively with photo-sensor bollards.

Applications

  • Pedestrian crossings
  • School crossings
  • School zones

Benefits

  • High intensity LEDs command the attention of drivers and significantly increase driver yield rates.
  • LEDs visible under all weather conditions.
  • Easy installation with minimal traffic disruptions.

Features

  • MUTCD Section 2A.07 / 2A.08 Compliant with push-button activation.
  • MUTCD compliant flash pattern: Wig-Wag + Simultaneous (WW+S).
  • Yellow LED RRFB light bar.
  • Optional Pedestrian Confirmation Light alerts pedestrians that the RRFB is flashing.
  • Single or double-sided (back-to-back) configuration.
  • LED life expectancy over 100,000 hours.
  • Solar or AC powered.
  • Day and night visibility.
  • Automatic dimming at night to reduce glare.
  • Push-button or Photo-Sensor Bollard activation.
  • Fast, easy installation.
  • Easy battery replacement in field.
  • Quick LED light replacement.

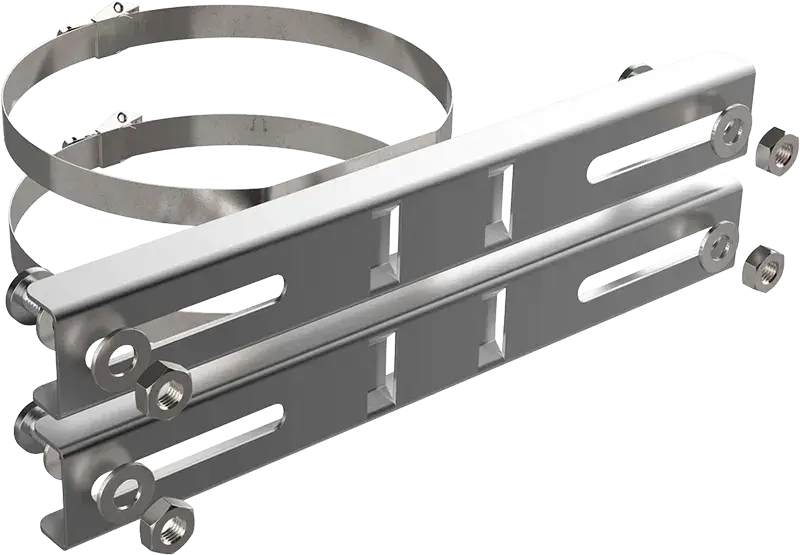

  • Multiple mounting hardware options.

TS60 LED Rectangular Rapid Flashing Beacons

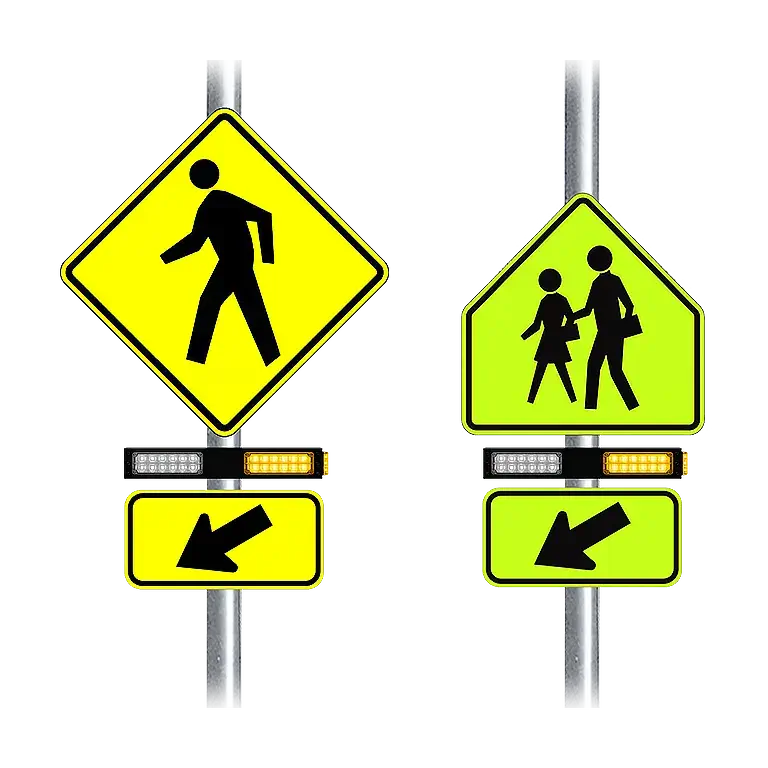

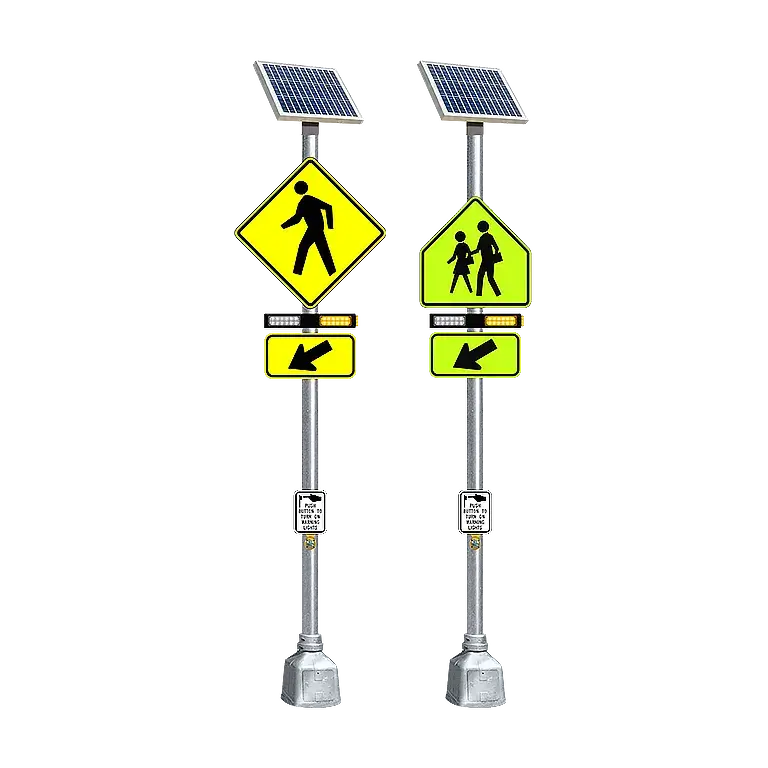

Shown with RRFB, pedestrian crossing sign, crosswalk arrow sign, and push-button station (left).
Shown with RRFB, school zone crossing sign, crosswalk arrow sign, and push-button station (right).

TS60 LED Rectangular Rapid Flashing Beacons, back-to-back
RRFBs are placed on both sides of a crosswalk in a single or double-sided (back-to-back) configuration.



Get a Quote

Data Sheet

Options

Pole Options

telespar pole
Telespar Poles:
The Telespar Pole is 2″ x 2″ and is available in 8′, 10′ or 12′ lengths. We offer a 5′ x 2.25″ sleeve. The Telespar pole and sleeve combination is considered a breakaway system.

aluminum pole

Aluminum Pole System:
Our 4.5″ Aluminum Pole System has a clean and professional look, with the added security of a required breakaway pole application. It is approved by the FDOT and meets MUTCD requirements. Our Aluminum Pole System is available in 10′, 12′ or 14′ lengths. A pole cap is included along with 4 galvanized 3/4″ x 18″ anchor bolts.

Videos

Specifications

Specifications

  • Construction: .080 highway grade aluminum/stainless fasteners.
  • LED Modules: 2 arrays of 24 yellow LEDs
  • Dimensions (weight):
    • Light Bar: 24.5″L x 2.25″W x 4″H (5 lb.)
    • LED Modules: 7.25″L x 3.125″W
    • Locking Cabinet: 10.54″ x 12.54″ x 7.35″ (6 lb.)
    • Battery: 7″ x 3″ x 6.5″ (15 lb.)
    • 20W Solar Panel: 22.68″L x 14.06″W x 1.18″H (6.17 lb.)
  • Optional Pedestrian Confirmation Light: mount on left or right side of light bar.
  • Traffic Sign Sizes: 24″, 30″, 36″, 48″
  • Traffic Sign Reflective Sheeting Types:
    • Type IX reflective sheeting.
    • Fluorescent yellow green sheeting.
  • Power:
    • 12 volt solar panel with SLA battery (12 volt, 22 amp)
    • AC power
  • LED Lighting:
    • MUTCD Compliant RRFB light bar.
    • Wig-Wag + Simultaneous (WW+S) flash pattern.
    • Single-sided with or without pedestrian confirmation light.
    • Double-sided with or without pedestrian confirmation light.
  • Activation: Push-buttons, Push-button Stations, or Pedestrian Detection Photo-Sensor Bollards.
  • Locking Cabinet:
    • High-impact, UV resistant polycarbonate
    • UL/NEMA 4X (IP66)
    • Light gray opaque hinged enclosure
    • Stainless steel locking latch
    • Dimensions: 10.54″ x 12.54″ x 7.35″
    • Part Number: H12106HLL
  • Optional mounting pole systems available.
  • Warranty: 10 year solar collector panel, 2 year PCB/LED technology, 1 year battery.

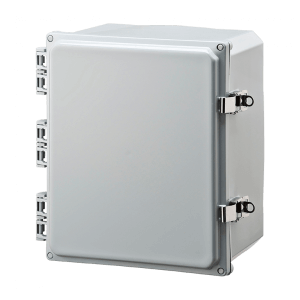

RRFB Locking Cabinet

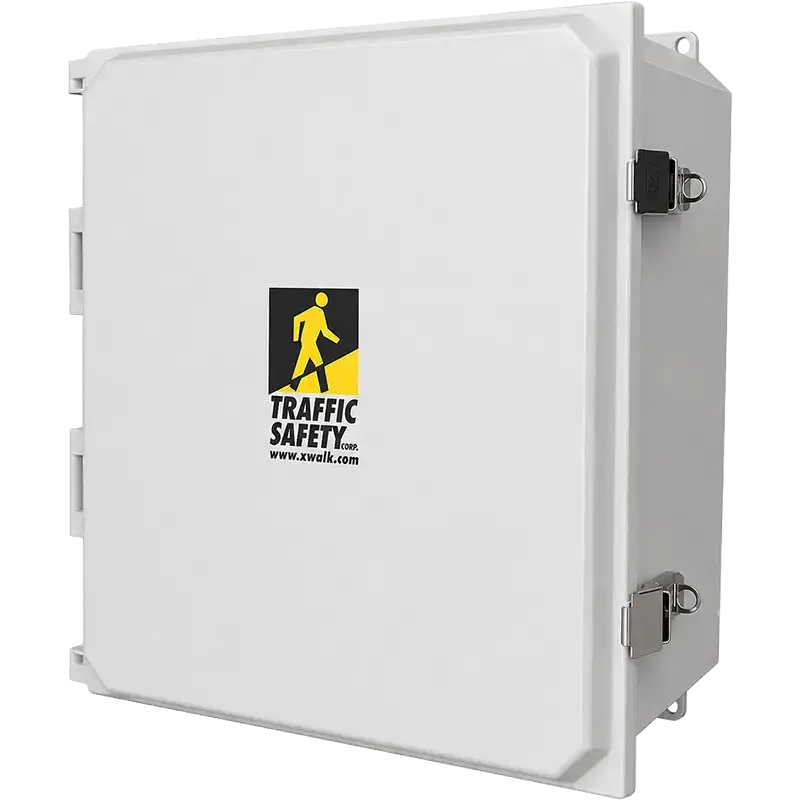

Locking Cabinet

Ordering Codes

SI-RRFB: Single-sided RRFB without pedestrian confirmation light
SI-RRFBC: Single-sided RRFB with (1) pedestrian confirmation light
SI-RRFBD: Double-sided (back-to-back) RRFBs without pedestrian confirmation light
SI-RRFBCD: Double-sided (back-to-back) RRFBs with (1) pedestrian confirmation light

Power Activation Options (select only one)
AC: AC

DC: DC[1]

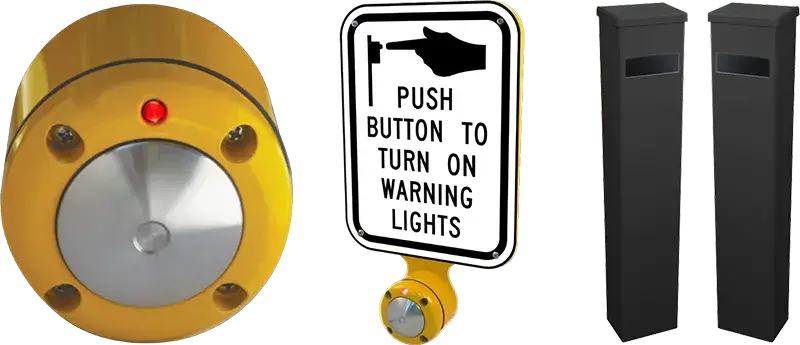

 1: 4EVR Push-Button with Stainless Steel Button[2]
2: 4EVR Push-Button Station with Stainless Steel Button[2]
3: Guardian APS Push-Button Station with Audio Caution Message Capability[2]
4: Pedestrian Detection Photo-Sensor Bollards
1. DC power option includes solar panel and battery.

2. MUTCD Section 2A.07 / 2A.08 Compliant with push-button activation. RRFBs should not be configured to flash 24/7.
